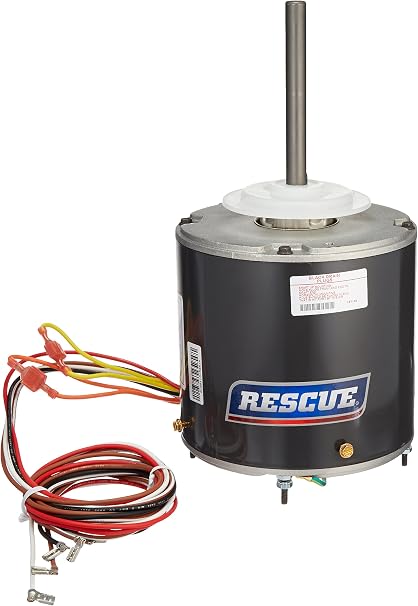

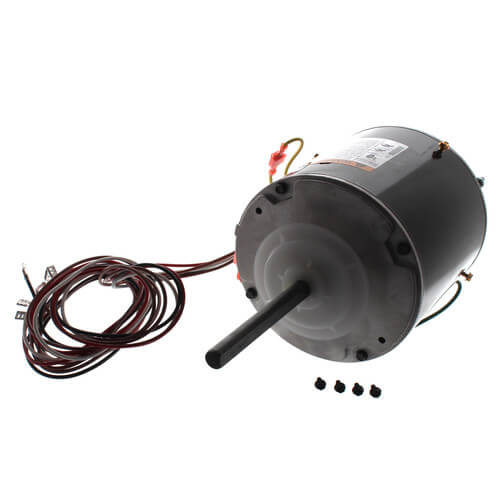

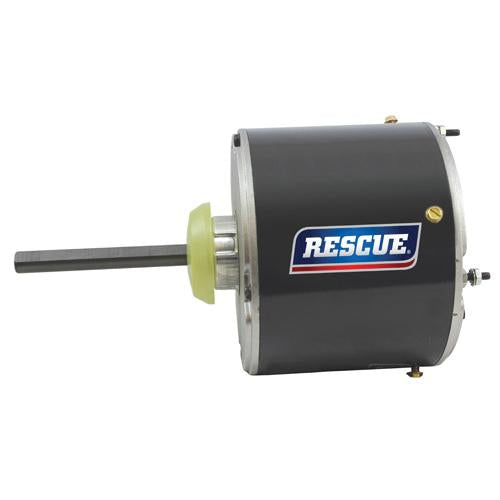

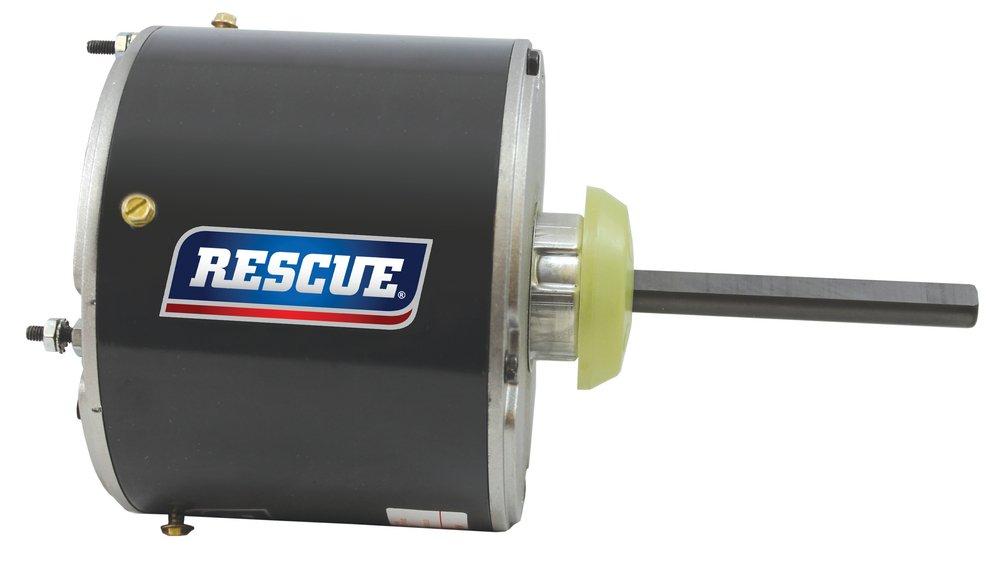

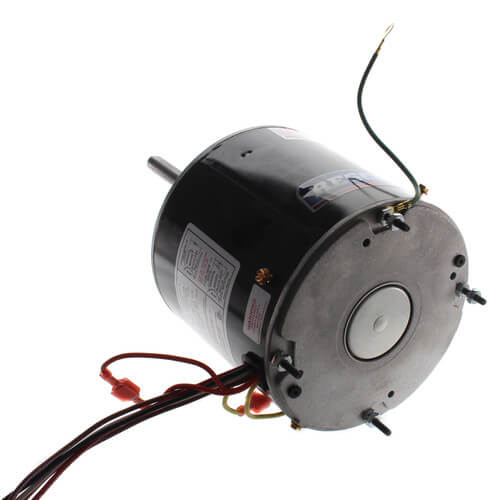

Us Motors 5464 rescue condenser fan motor 1/3 hp to 1/6hp 5.6 inch 208-230v 1-phase 60hz 825 rpm 2-speed

Product Description

The US Motors 5464 is a RESCUE series condenser fan motor designed for residential and commercial condensing units. This 1-phase motor operates at 208-230V and 60Hz, offering an adjustable horsepower range from 1/3 HP to 1/6 HP. It features an 825 RPM 2-speed operation, making it suitable for various fan applications. The motor is built with a Totally Enclosed Air Over (TEAO) enclosure and Class B insulation, ensuring durability and performance.

• Adjustable horsepower from 1/3 HP to 1/6 HP with 2-speed operation
• Automatic Reset Thermal Overload Protector for enhanced safety
• Continuous Duty, Air Over design for consistent performance

Product Highlights

Versatile replacement motor for condenser fan and direct drive blower applications, offering multi-horsepower capability.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 5464
• Country of Origin: USA

Technical Specifications

• Speed: 825 RPM
• Voltage: 208 to 230 Volt AC
• Horsepower: 1/3 hp, 1/4 hp, 1/5 hp, 1/6 hp
• Phase: 1
• Poles: 8
• Bearing Type: Ball
• Rotation: Counterclockwise (Lead End)
• Motor Type: PSC, FHP
• Shaft Diameter: 1/2 Inch Diameter x 5 Inch Length
• Lead Length: 48 Inch
• Capacitance: 10 µF at 208V / 7.5 µF at 230V
• Run Capacitor Voltage: 370 Volt
• Locked Rotor Current: 4.3 Amp
• Locked Rotor Torque: 12.62 Ounce Foot
• Iron Stack Rating: 2.25
• Thermal Protector Type: Automatic Reset
• Breakdown Torque: 49.98 Ounce Foot
• Ambient Temperature: 60 Deg C
• Application: Residential and Commercial Condensing Unit
• Enclosure Type: TEAO
• Frequency: 60 Hertz
• Insulation Class: B
• Motor FLA: 1.9/1.2 Amp
• Mounting Type: Extended Stud
• NEMA Frame Size: 48Y
• Number of Speeds: 2
• Reversible: Yes
• Material: Rolled Steel
• Service Factor: 1
• Efficiency: 64.6 %
• Duty Type: Continuous
