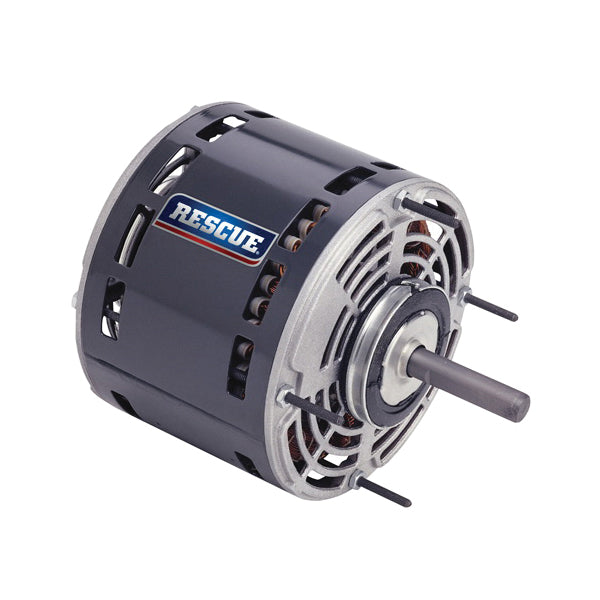

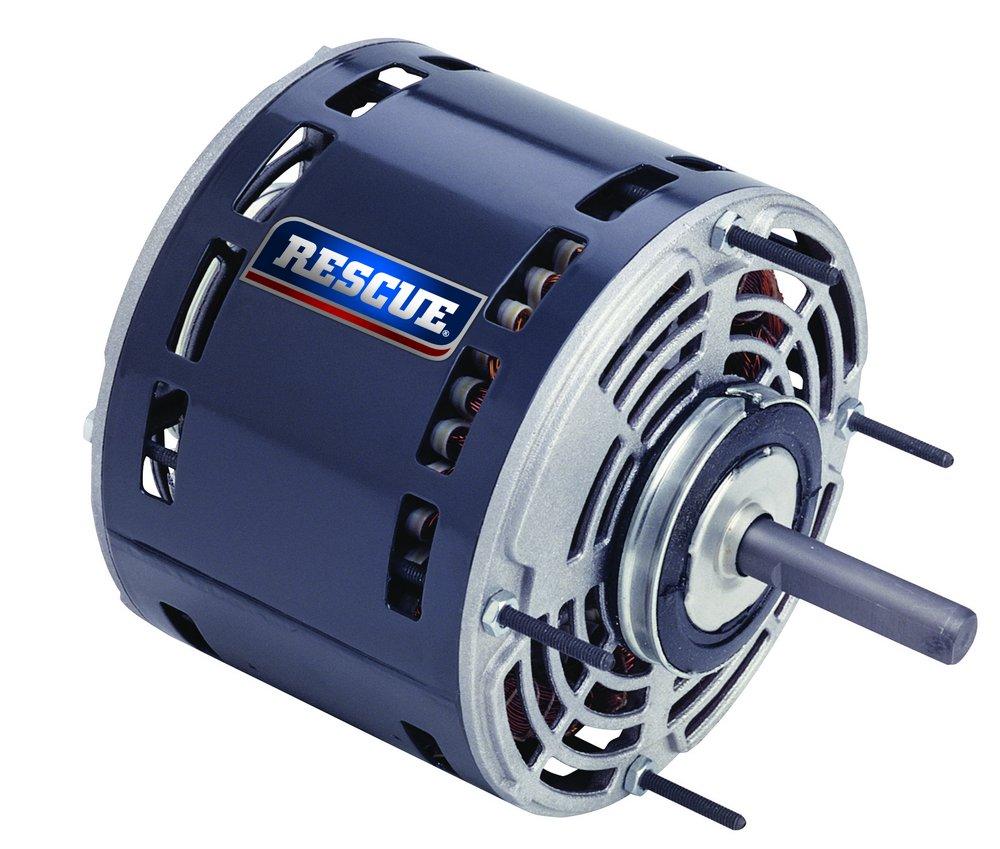

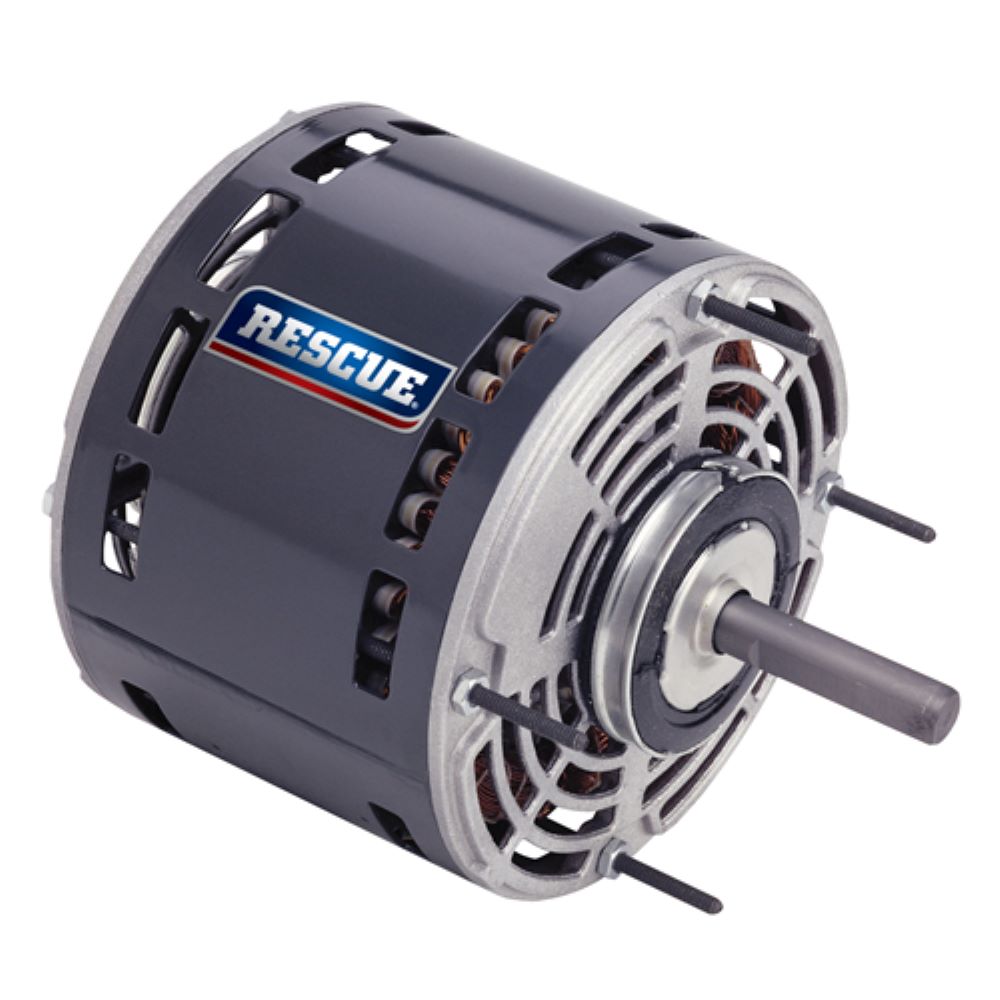

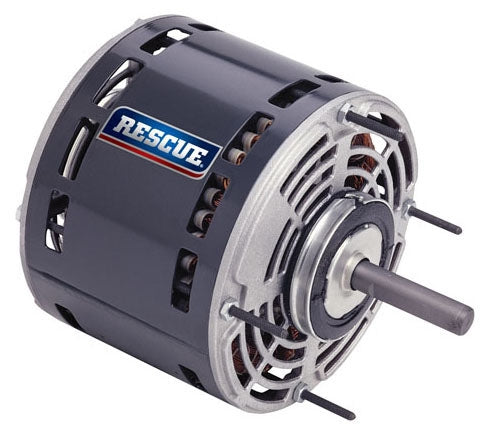

Us Motors 5460 blower rescue motor 1/2-1/3-1/4-1/5-1/6hp 115v 1075rpm 5.6 inch diameter

Product Description

The US Motors 5460 is a direct drive fan and blower motor with an OPAO enclosure, suitable for residential and commercial applications. It operates at 115 Volt AC, 60 Hertz, offering 1/6 to 1/2 HP power and 1075 RPM across 4 speeds. This 1-phase motor features a 5.6 Inch Diameter, 1/2 Inch Diameter shaft, and automatic reset thermal protection, approved by UL and CSA.

• Stud Extension for versatile mounting.
• Designed for use with 370 Volt capacitor.
• Features automatic reset thermal overload protection and reversible rotation.

Product Highlights

Ideal for residential and commercial direct drive fan and blower applications, including air handlers and furnaces.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 5460

Technical Specifications

• Enclosure Type: OPAO
• Power Rating: 1/6 to 1/2 HP
• Voltage Rating: 115 Volt AC
• Frequency Rating: 60 Hertz
• Motor FLA: 7.3 Amp
• Number of Speeds: 4
• Speed Rating: 1075 RPM
• Reversible: Yes
• Service Factor: 1
• Insulation Class: B
• Mounting: Ring/Stud Mount
• Application: Residential and Commercial Direct Drive Fan and Blower
• Approval: UL, CSA
• Number of Phases: 1
• Number of Poles: 6
• Bearing Type: SAB
• Motor Type: PSC, FHP
• Rotation Type: Counterclockwise (Lead End)
• Lead Size: 24 Inch
• Locked Rotor Current Rating: 14.51 Amp
• Locked Rotor Torque: 10.63 Ounce Foot
• Capacitance: 12.5/7.5 Microfarad
• Run Capacitor Voltage Rating: 370 Volt
• Iron Stack Rating: 2.25
• Thermal Protector Type: Automatic Reset
• Breakdown Torque: 57.37 Ounce Foot
• Ambient Temperature Rating: 40 Deg C
• Includes: 2.5 Inch Diameter Hub Ring, (4) Holes in Shell (for Rheem Mount)
• Manufacturer Part Number Additional: K055ENV0115012B
• Frame: 48YZ
• UPC: 786382067380
• Efficiency: 65.9 %
• Drive Type: Direct
• Duty Type: Continuous
• Material: Rolled Steel
