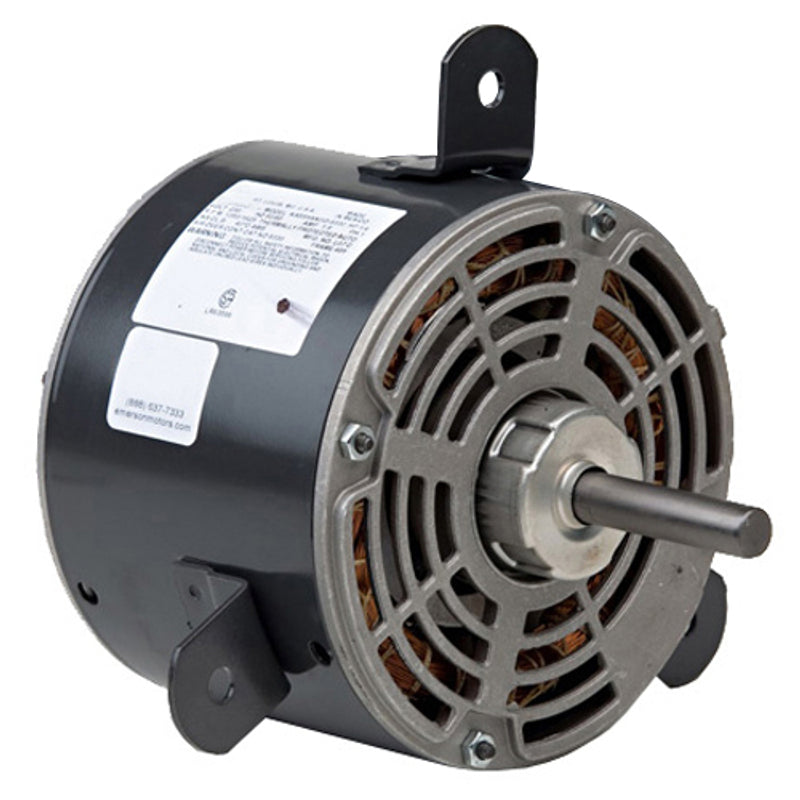

US Motors 4137 Motor 1/20 HP 1075 RPM 42Y

Product Description

The US MOTORS 4137 is a direct drive blower motor with a rating of 1/20 horsepower and a speed of 1075 RPM. It is primarily designed for use in packaged terminal air conditioners and heat pump units. The motor features a permanent split capacitor for efficient operation and has an automatic overload protection to ensure safety. Ideal for continuous duty and air over applications.

• 3-speed operation for adjustable airflow
• Automatic reset thermal overload protection
• Suitable for continuous duty in air over applications

Product Highlights

This motor operates at 277 VAC and comes with a 42Y NEMA frame, supporting bracket mounting and an open air over enclosure. It is UL and CSA listed for added reliability.

Product Information

Standard Information

• Manufacturer Part Number: 4137
• Manufacturer: US Motors

Technical Specifications

• Type: Direct Drive Blower
• Horsepower: 1/20 HP
• Speed: 1075 RPM
• Number of Poles: 6
• Phase: 1
• Frequency: 60 Hz
• NEMA Frame: 42Y
• AC Voltage: 277 VAC
• Enclosure: Open Air Over
• Mounting: Bracket
• Current Rating: 0.55 A
• Input Frequency: 60 Hz
• Motor Type: Permanent Split Capacitor
• Rotation: CCW Lead End
• Maximum Voltage: 277V
