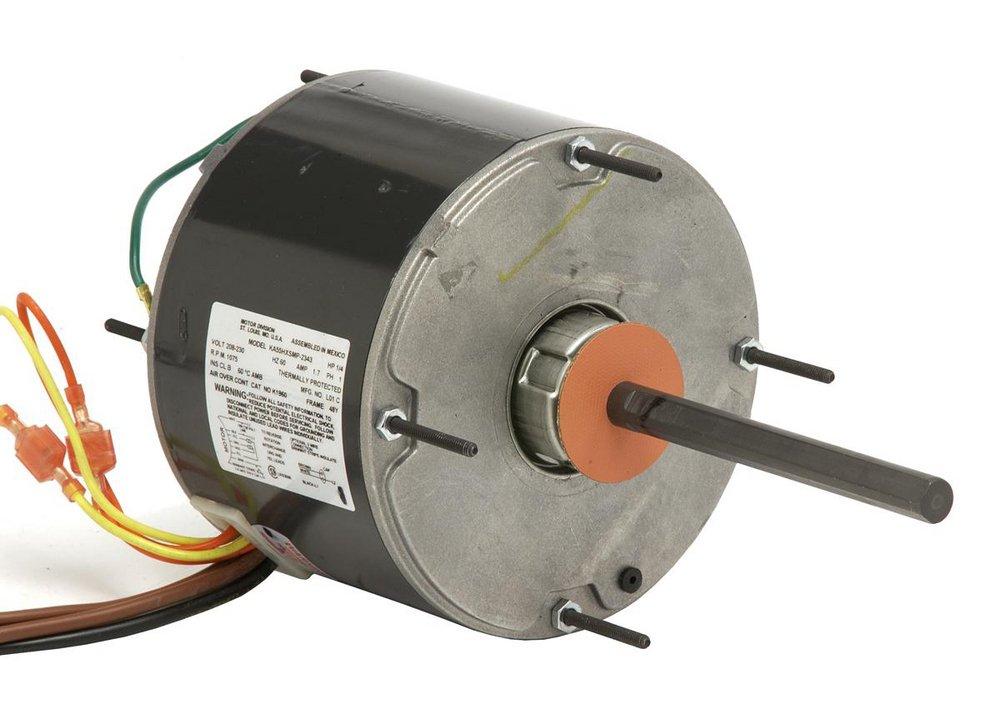

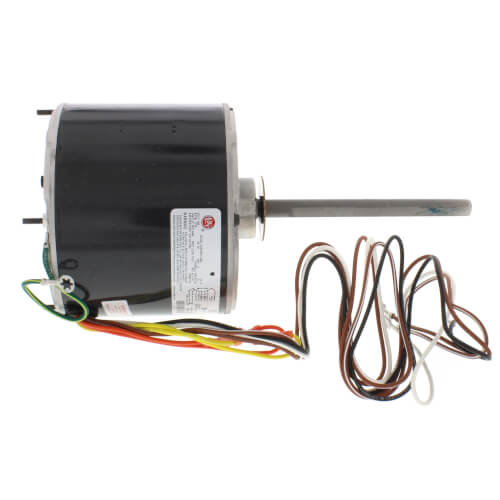

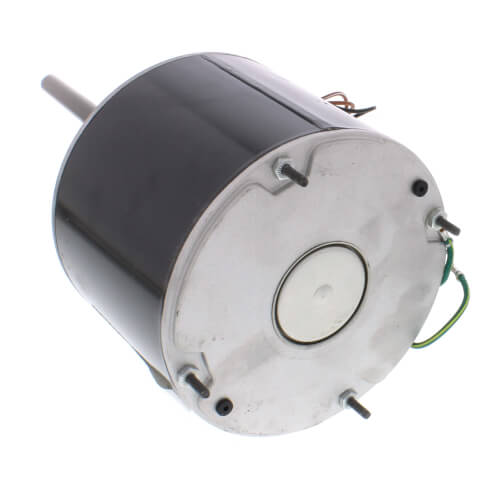

US Motors 3736 1/4 Hp 1075 Rpm 460V Single Phase Condenser Motor USM3736

Product Description

The US Motors 3736 is a 1/4 horsepower condenser motor designed for single-phase applications. It operates at a speed of 1075 RPM and is rated for 460 volts. This motor is ideal for use in HVAC systems and can be utilized in both residential and commercial settings.

• Reversible rotation
• Automatic reset thermal overload protector
• Class B insulation

Product Highlights

This condenser motor features a robust construction and effective cooling capabilities, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Nidec-US Motors
• MPN: 3736

Technical Specifications

• Item Number: 3736
• Power Rating: 1/4 Hp
• Voltage Rating: 460 V
• Speed: 1075 Rpm
• Frame Size: 48
• Insulation Class: Class B
• Service Factor: 1
• Overall Length: 11.1 Inches
• Body Diameter: 5.625 Inches
• Shaft Size: 1/2 Inch Diameter x 6 Inch Length
• Bearings: Ball Bearing
• Mounting Type: Stud Mount
