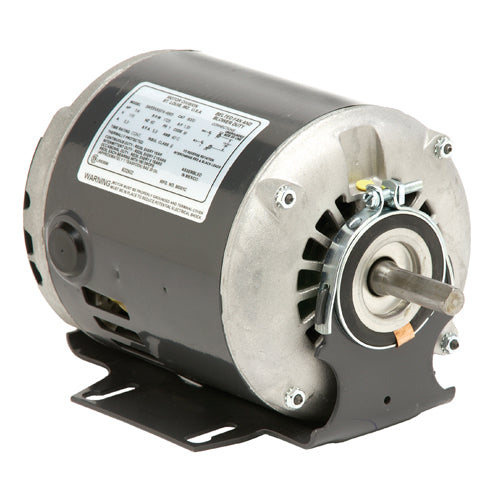

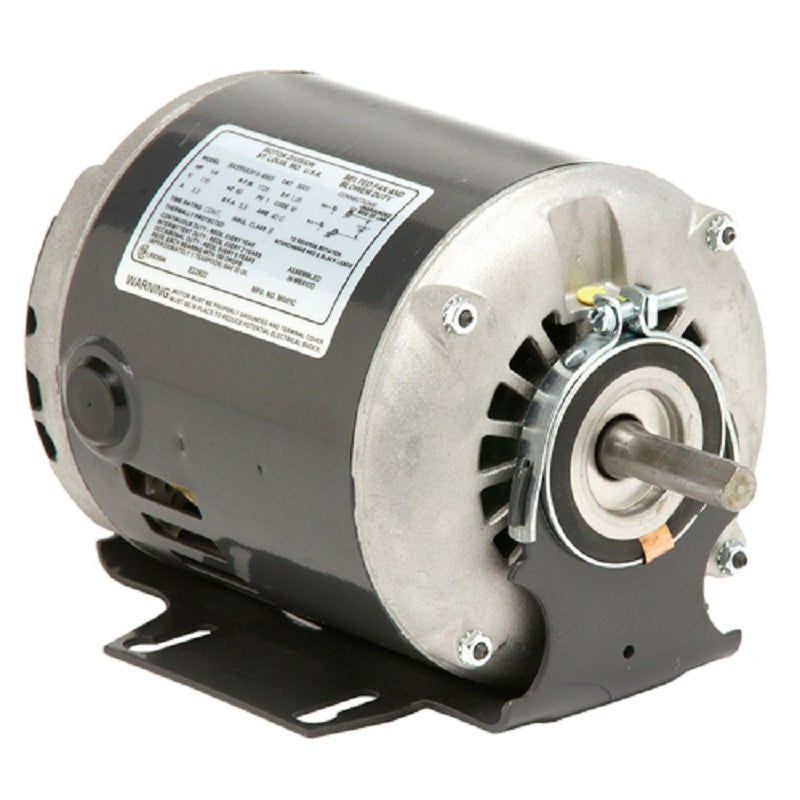

US Motors 3624 Belt Drive Fan and Blower Motor

Product Description

The US MOTORS 3624 is a split-phase motor ideal for belt-driven fan and blower applications. This motor features a robust open dripproof enclosure designed to withstand various environmental conditions. The 48Y frame supports efficient operation at 115 volts and delivers a speed of 1725 RPM, offering an output of one-half horsepower. This unit is constructed from rolled steel for durability and can operate in a reversible rotation mode.

• Perfect for belt-driven fan and blower systems.
• Includes an open dripproof enclosure.
• Supports reversible motor rotation.

Product Highlights

This motor is suitable for diverse applications including ventilation and air handling. Its reliable design ensures consistent performance.

Product Information

Standard Information

• Manufacturer: US Motors (Nidec)
• Part Number: 3624

Technical Specifications

• Application: Belted Fan and Blower
• Enclosure Type: ODP
• Frame Size: 48Y
• Horsepower: 1/2 HP
• Motor Type: Split Phase
• Rotation: Reversible
• RPM: 1725
• Input Voltage: 115V
• Phase: Single Phase
• Number of Speeds: 1
• Mounting Type: Base
• Construction: Rolled Steel
• Product Type: Belt Drive Fan and Blower Motor
• Output Current: 7.4
• Efficiency: 64.5%
• Operating Frequency: 60 Hz
• Insulation Class: B
• Maximum Ambient Temperature: 40° C
• Overload Protection: Automatic
• Service Factor: 1.25
• Bearing Type: Sleeve
• Electrical Type: Split Phase
