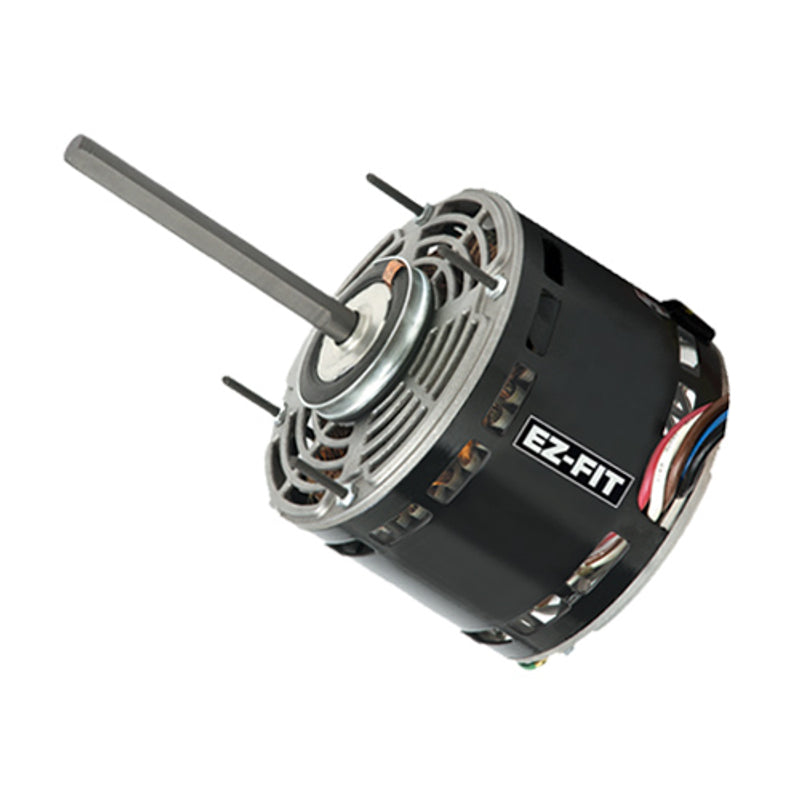

US Motors 3312 EZ-FIT Permanent Split Capacitor Motor Direct Drive Blower 0.75 HP

Product Description

The US Motors 3312 EZ-FIT Permanent Split Capacitor Motor serves as a direct drive blower motor suitable for various applications. This motor features a diameter of 5.6 inches and is designed with an Open Air Over (OPAO) enclosure. Operating at 1075 RPM, this motor efficiently meets the needs of different direct drive blower systems.

• Direct drive blower application
• Open Air Over enclosure
• Multi-horsepower motor capabilities

Product Highlights

Product Information

Standard Information

• Brand: US Motors Nidec Motor Corp
• Application: Direct Drive Blower

Technical Specifications

• MPN: 3312
• Horsepower: 0.75 HP
• RPM: 1075
• Voltage: 115 V
• Phase: 1 Ph
• Number of Speeds: 4
• Frame Size: 48Y
• Dimensions: 5.6 inches diameter x 12.152 inches length
• Weight: 16.6 pounds
• Insulation Class: B
• Mounting Type: Ring/Stud
• Overload Protection: Automatic
• Shaft Size: 0.5 inches diameter x 5 inches length
