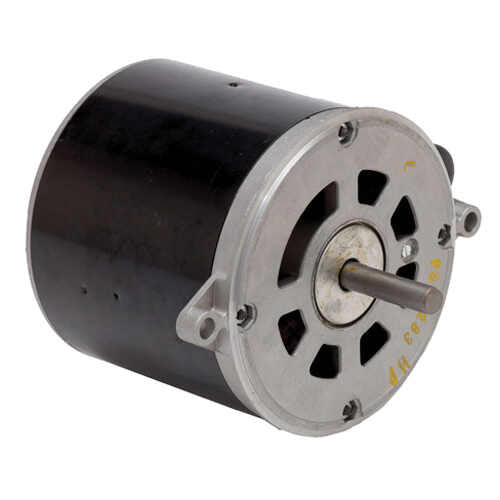

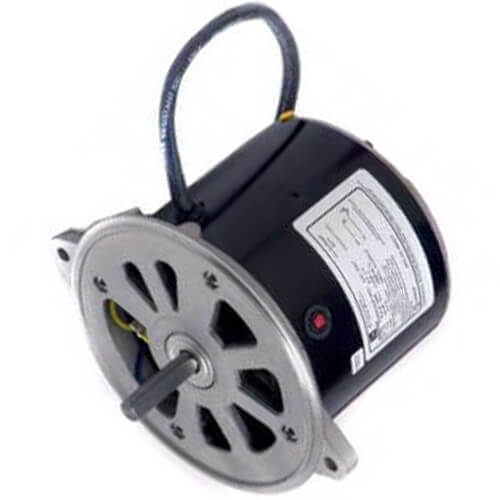

US Motors 2302 Oil Burner Motor Split Phase 1/4 HP 120 VAC 3450 RPM

Product Description

The US Motors 2302 is an oil burner motor with a split phase design. This motor operates at one-fourth horsepower and is rated for 120 volts at a speed of three thousand four hundred fifty RPM. It is suitable for various oil burner applications.

• Includes 20 leads, positioned at three o'clock when viewed from the end opposite the shaft.
• Features a service factor of one and a manual reset thermal overload protector for increased reliability.
• Employs Class A insulation and comes with a seven and one-quarter inch bolt circle and a flange with a diameter of six point two seven five inches.

Product Highlights

This motor is designed to meet specific requirements for oil burner units, ensuring efficiency and safety.

Product Information

Standard Information

• Brand Name: US Motors
• Type: Oil Burner Motor

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 120
• RPM: 3450 RPM
• Phase: 1 PH
