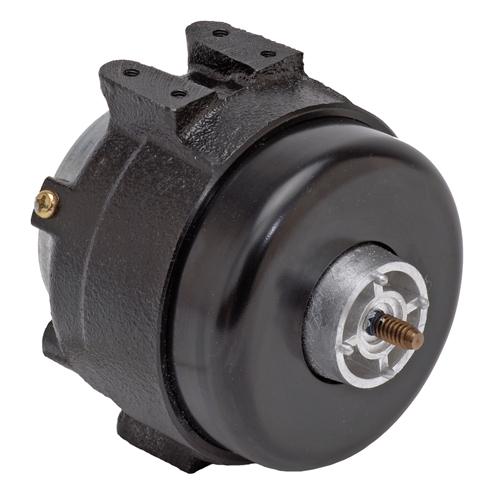

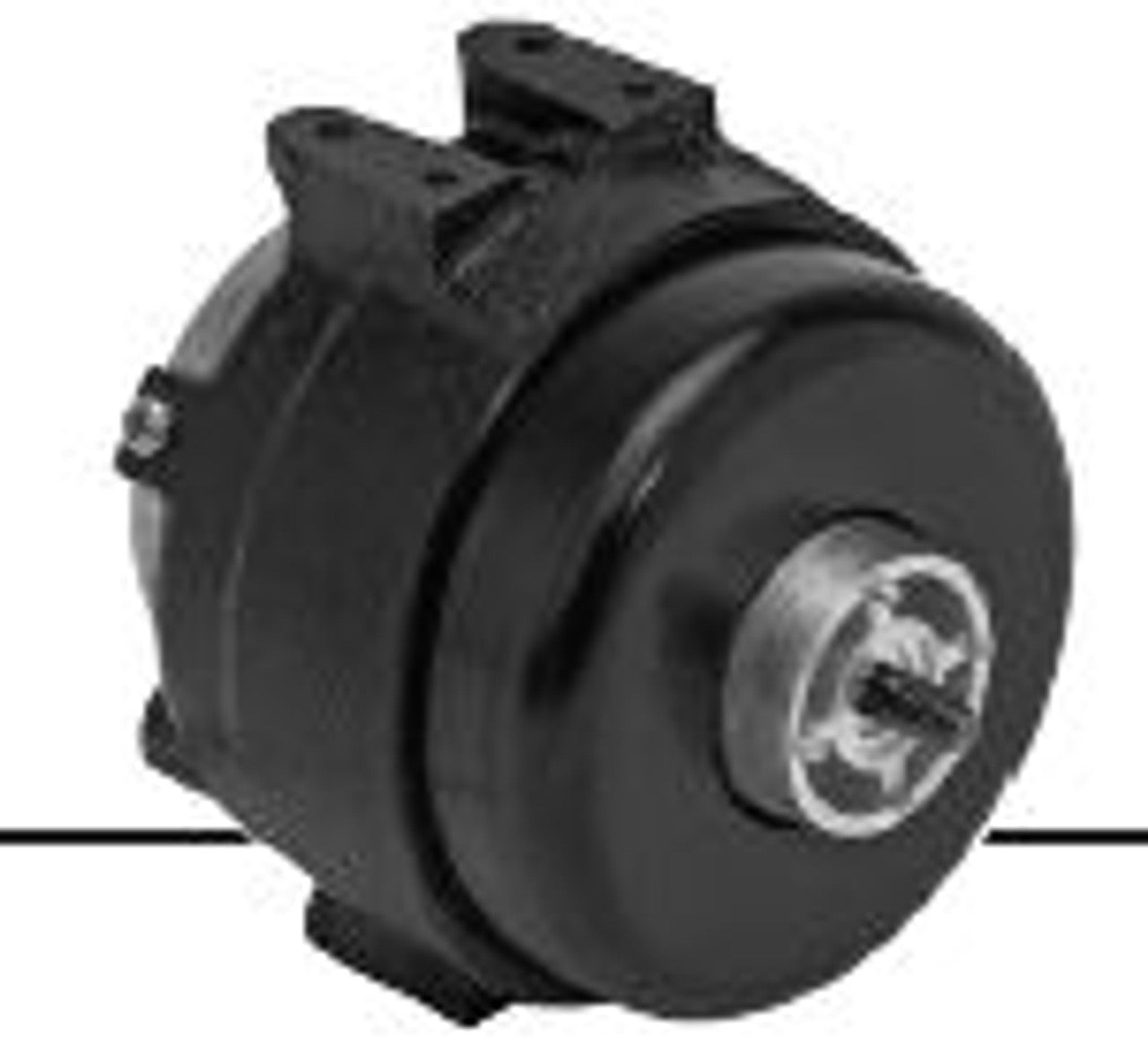

US Motors 2134 Shaded Pole Unit Bearing Fan and Blower Motor

Product Description

The US Motors 2134 is a shaded pole unit bearing motor, ideal for fan and blower applications. This motor operates at two hundred thirty volts and sixty hertz, providing fifty watts of power at one thousand five hundred fifty RPM. It is a single-phase motor with a totally enclosed air over (TEAO) design and impedance thermal protection. This motor is optimized for continuous running duty and is suitable for operation in any orientation.

• Shaded pole unit bearing motor
• Operates at 230V, 50W, 1550 RPM
• Features TEAO enclosure and thermal protection

Product Highlights

This motor is designed for reliability in various fan and blower systems.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer Part Number: 2134

Technical Specifications

• Model Number: 2134
• Product Type: Shaded Pole
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Horsepower: 50W
• Input Voltage: 230 VAC
• Frequency: 60 Hz
• Number of Speeds: 1
• Phase: 1
• RPM: 1550
• Rotation: CW Shaft End
• Shaft Diameter: 0.375 inches
• Shaft Length: 1.5 inches
• Thermal Protection: Impedance
• Full Load Amps: 0.9
• Weight: 6 lbs.
