Us Motors 21109 Furnace Draft Inducer Motor

Product Description

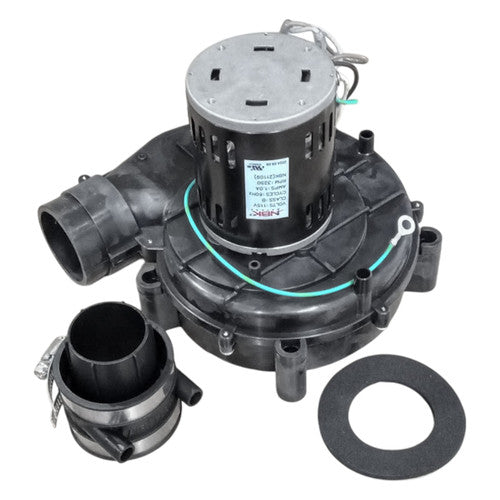

The US MOTORS 21109 is a furnace draft inducer motor. This motor is designed for use in various furnace models. It features clockwise rotation when viewing the shaft end and includes a capacitor. It also comes with a rubber boot, gasket, and clamps, and has a hi-limit switch mounted to the housing.

• 115 V, 1.0 Amps
• 3250 RPM
• Wheel size: 4-3/4 inch x 1-3/4 inch

Product Highlights

Furnace draft inducer motor with clockwise rotation, capacitor, and included accessories.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 21109

Technical Specifications

• Input Voltage: 115 V
• Output Current: 1.0 Amps
• RPM: 3250 RPM
• Rotation: CW Rotation as viewing shaft end
• Motor Type: PSC Motor, Capacitor Included
• Wheel Size: 4-3/4 inch x 1-3/4 inch
• Included: Rubber Boot, Gasket and Clamps Included
• Hi Limit Switch: mounted to housing
• Wiring: 2 wire hookup, molex plug on end of wires
• Ground Wire: None
