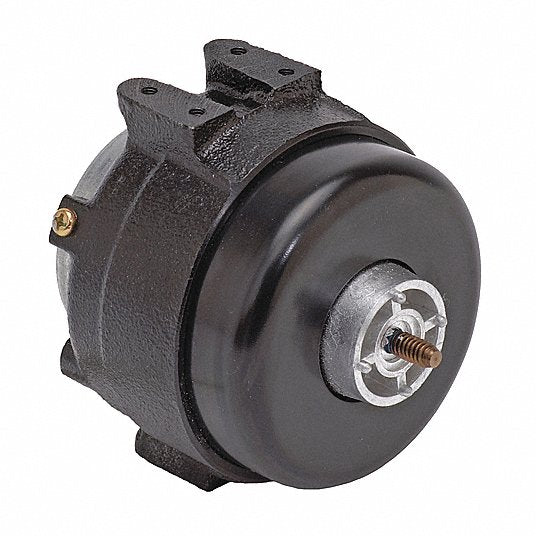

US Motors 2102-CL US Motors 2102 2.5W Shaded Pole Unit Bearing Motor

Product Description

The US Motors 2102-CL is a 2.5W shaded pole unit bearing motor suitable for various applications such as evaporator and condenser fans in refrigerated display cases and vending machines. This motor has a totally enclosed air over (TEAO) design and is built for all-angle operation.

• Permanently lubricated bearings for low maintenance.
• Includes a vibration dampener hub washer, speed nut, and mounting screws.
• Features impedance protection for enhanced reliability.

Product Highlights

This motor operates at 115V and 1550 RPM, making it ideal for specific cooling needs. Its clockwise lead end (CWLE) rotation is optimal for various installations.

Product Information

Standard Information

• Brand: US Motors
• MPN: 2102-CL

Technical Specifications

• Watts: 2.5W
• RPM: 1550
• Volts: 115
• Hertz: 50/60
• Motor Type: FHP (Fractional Horsepower)
• Rotation: CWLE (Clockwise Lead End)
• Poles: 4
• Motor Enclosure: TEAO (Totally Enclosed Air Over)
