Description

Product Description

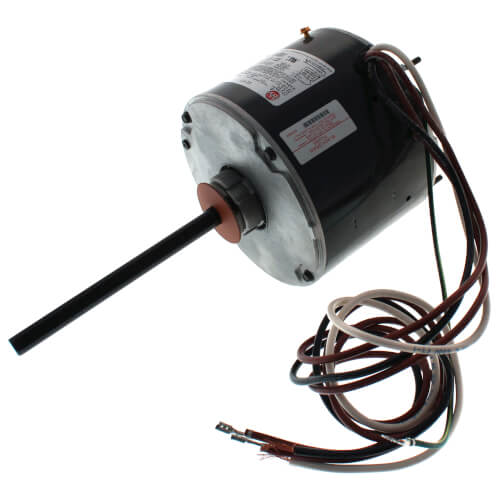

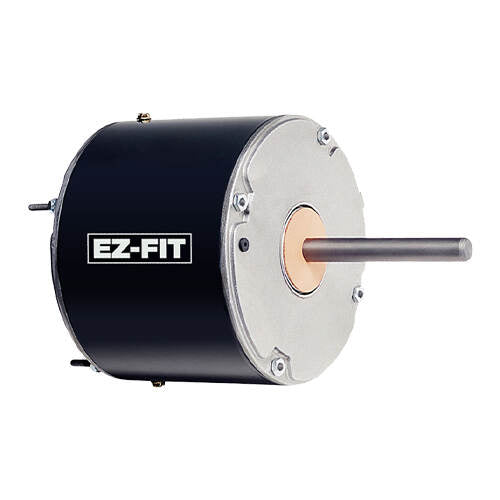

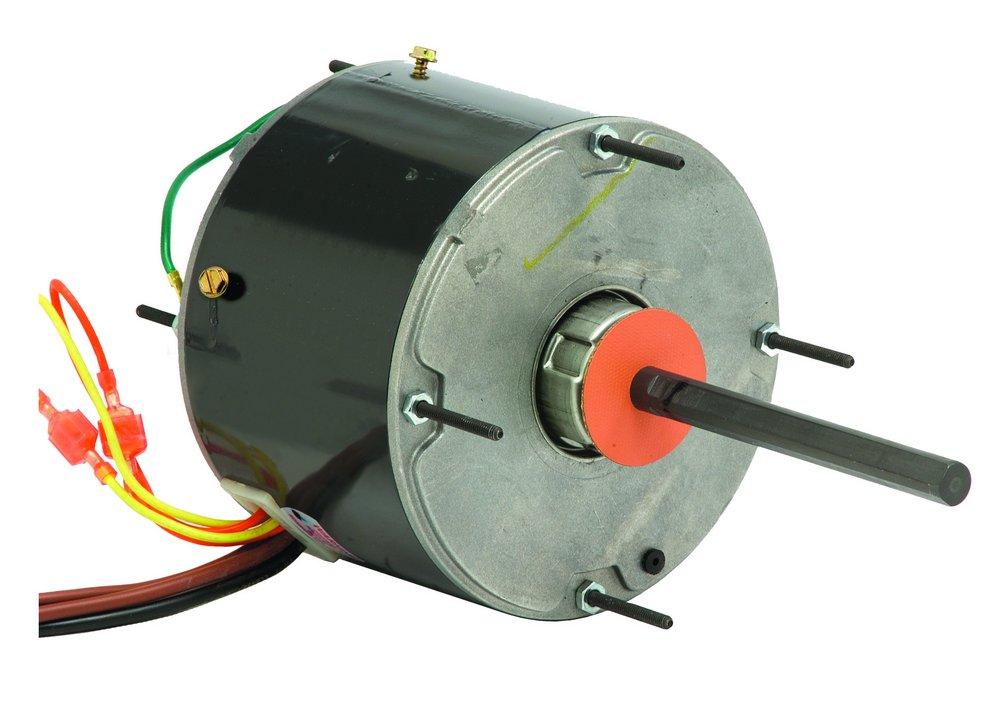

The US Motors 1874 is a 1/4 horsepower condenser motor designed for HVAC applications. It operates at 825 RPM with a voltage range of 208-230V. This motor is suitable for a variety of uses, from residential to commercial air conditioning systems.

  • Reversible rotation
  • Class B insulation
  • Built-in thermal overload protection

Product Highlights

This motor features a compact design that fits in tight spaces while maintaining durability.

Product Information

Standard Information

  • Brand: US Motors
  • MPN: 1874

Technical Specifications

  • Motor Type: PSC (Permanent Split Capacitor)
  • Motor HP: 1/4 HP
  • Voltage: 208-230 VAC
  • RPM: 825
  • Frame Size: 48
  • Weight: 12.3 lbs
  • Diameter: 5.6 inches
  • Shaft Length: 6 inches
  • Shaft Diameter: 0.5 inches (1/2)
  • Protection: Thermally Protected
  • Duty Cycle: Continuous
  • Mount Type: Stud/band mount
  • Capacitor Required: 5 MFD at 370V
