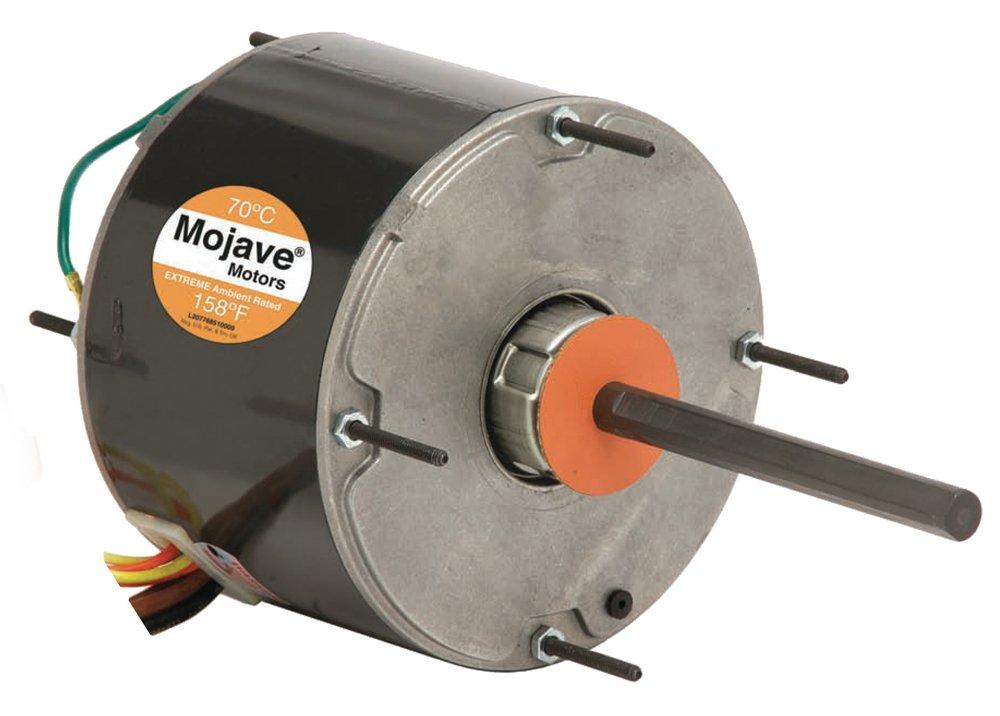

U.S. Motors 1862H HVAC Single Phase TEAO Stud/Band Motor 1/2 HP 1075 RPM 208-230 Voltage

Product Description

The U.S. Motors 1862H is an HVAC single phase TEAO stud/band motor with a power rating of one-half horsepower and a speed of 1200 rpm. This motor is designed for use in HVAC applications, specifically as a condenser fan motor.

• Available in a TEAO enclosure
• Durable construction for long-lasting use
• Easy installation with stud/band mount option

Product Highlights

This motor features continuous duty operation, making it suitable for demanding environments and high ambient temperatures.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 1862H

Technical Specifications

• Motor Application: HVAC, Condenser Fan
• Frame: 48, 48Y
• Drive End Bearing: 6203
• Insulation: F
• Full Load Amps: 3.2
• Voltage Rating: 208-230
• HP: 1/2
• Hz: 60
• Phase: Single Phase
• Duty: Continuous Duty
• Service Factor: 1
• Open End Bearing: 6203
• Poles: 6
• Mounting: Stud, Stud/Band
• Full Load RPM: 1075
• Enclosure: TEAO - Totally Enclosed Air Over
• C Dimension: 11.8 inches
• Weight: 17.0 LB
