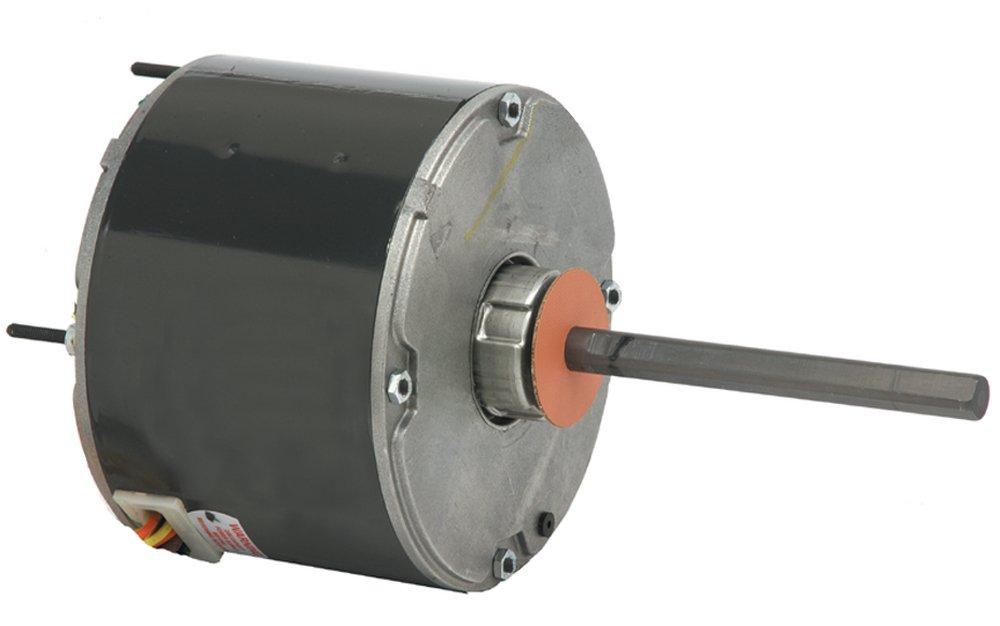

US Motors 1860 1/4 hp 1075 RPM 208/230V Single Phase Condenser Motor

Product Description

The US Motors Model 1860 is a 1/4 horsepower, 1075 RPM single-phase condenser motor designed for dependable power in cooling applications. This motor operates at both 208 and 230 volts, making it suitable for various HVAC systems.

• Reversible rotation for versatile installation.
• Built-in automatic reset thermal overload protector.
• Sleeve bearings ensure quiet and smooth operation.

Product Highlights

This motor features reliable performance with a class B insulation rating, ensuring it can handle high temperatures while maintaining efficiency. Its compact design allows for easy installation in tight spaces, and the motor is suitable for both commercial and residential applications.

Product Information

Standard Information

• Brand: US Motors
• MPN: 1860

Technical Specifications

• Horsepower: 1/4 HP
• RPM: 1075
• Voltage: 208/230 V
• Phase: 1
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Frame Size: 48Y
• Amperage: 1.7 A
• Efficiency: 66%
• Insulation Class: B
• Service Factor: 1
• Mounting Location: Any angle
• Bearing Type: Sleeve
