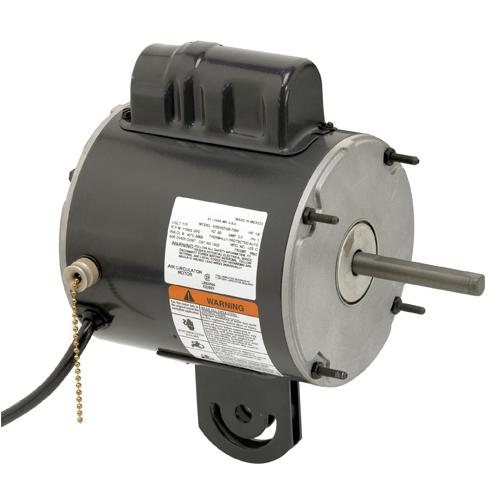

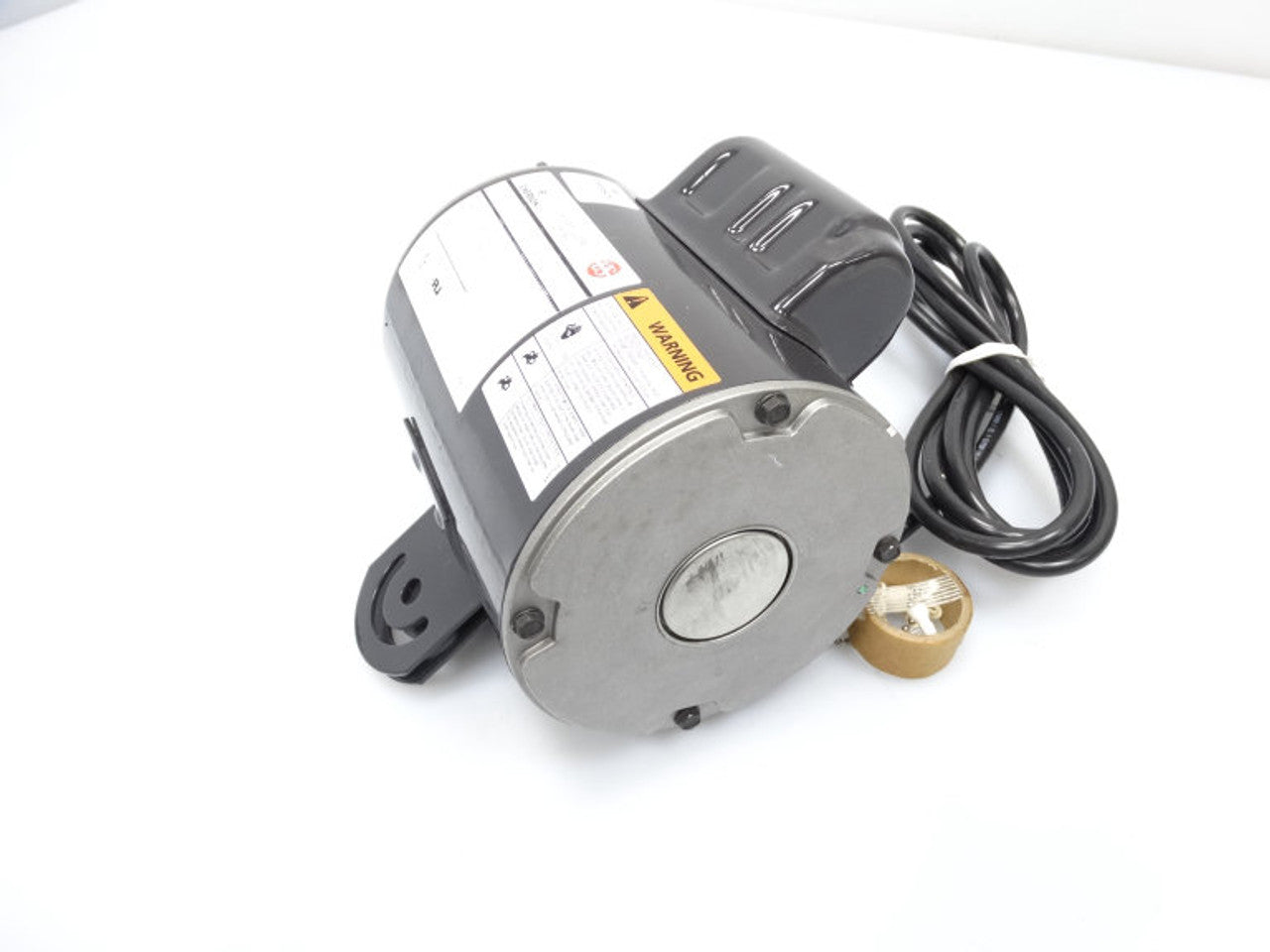

US Motors 1838 PSC Industrial Air Circulator Motor

Product Description

The US MOTORS 1838 is a PSC motor made for industrial air circulation tasks. It runs at 115 volts and 60 hertz, offering half a horsepower at 1075 RPM. This single-phase motor includes automatic thermal protection and is suitable for yoke mounting.

• Half horsepower and yoke mount design.
• Automatic thermal protection included.
• Capacitor of 12.5MFD/370VAC.

Product Highlights

This motor is designed for reliable air circulation in various industrial settings. It is easy to install and operate with efficient performance.

Product Information

Standard Information

• Brand: US Motors
• Product Type: PSC (Permanent Split Capacitor)

Technical Specifications

• MPN: 1838
• Horsepower: 1/2 HP
• Voltage: 115 V
• Hertz: 60 Hz
• RPM: 1075
• Full Load Amps: 15.69 FLA
• Service Factor: 1.00
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Insulation Class: B
• Rotation: CW Shaft End
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 40° C
• Ship Weight: 25 lbs.
