US Motors 1820 AC Motor 1 HP 56Z

Product Description

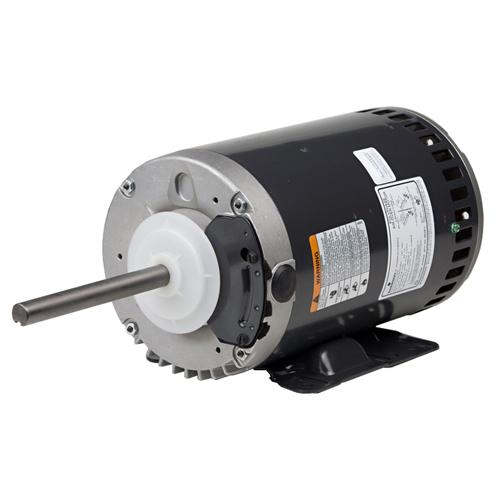

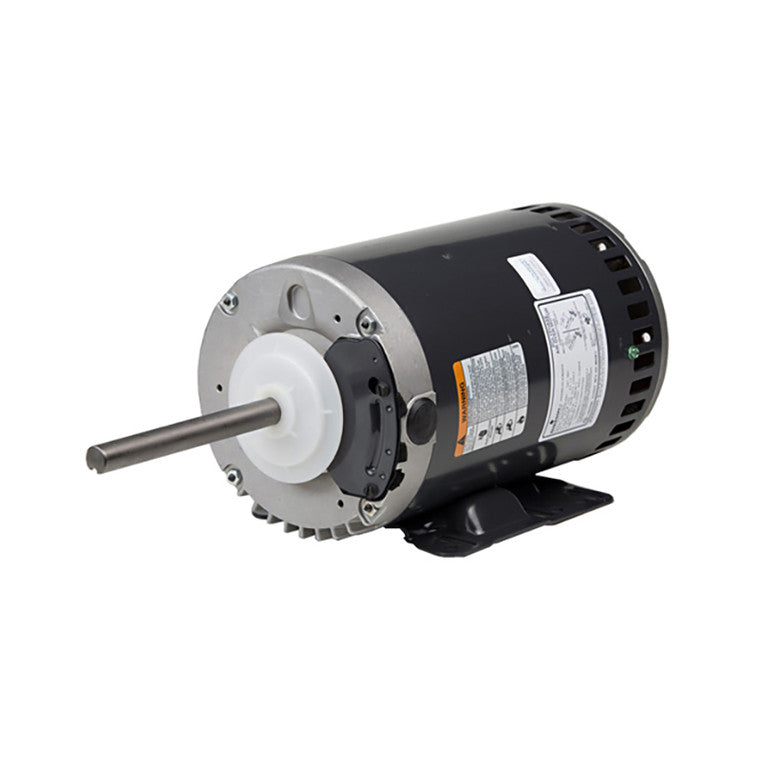

The US Motors 1820H is a three-phase AC motor with a focus on air handling and HVAC uses. This motor is especially suited for condenser fan applications. It operates efficiently at 208-230/460V and 60 Hz, providing a power output of one horsepower at a speed of 1140 RPM.

• Horsepower: 1 HP
• Rated Speed: 1140 RPM
• Frame Size: 56Z

Product Highlights

The US Motors 1820H is built for continuous duty and features a robust open air over enclosure, making it suitable for various HVAC tasks.

Product Information

Standard Information

• Manufacturer: US Motors (Nidec)
• Part Number: 1820H

Technical Specifications

• Motor Type: Air Handling (HVAC)
• Rated RPM: 1140 RPM
• Synchronous RPM: 1200 RPM
• Input Voltage: 208-230/460 V
• Phase: Three Phase
• Rated Input Frequency: 60 Hz
• Motor Full Load Amps: 4.2/2.1 A
• Insulation Class: F
• Duty Cycle: Continuous
• Bearing Type: Ball
• Number of Speeds: 1
• Mounting Type: Foot Mount
• Construction: Rolled Steel
• Ambient Temperature: 60°C
• Overload Protection: Auto
• Rotation Type: Reversible
• Maximum Ambient Temperature: 70°C
• Mounting Orientation: Vertical Shaft Up
• Shipping Weight: 29.44 lbs
