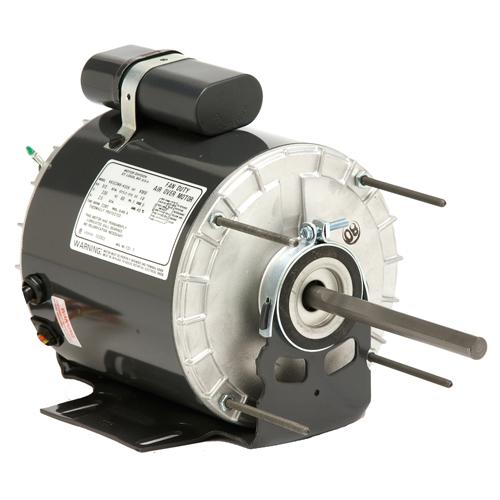

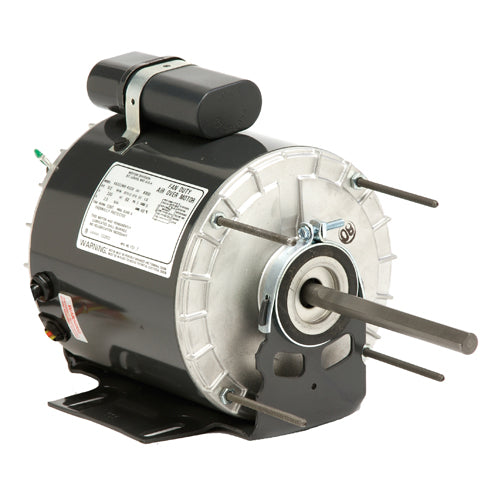

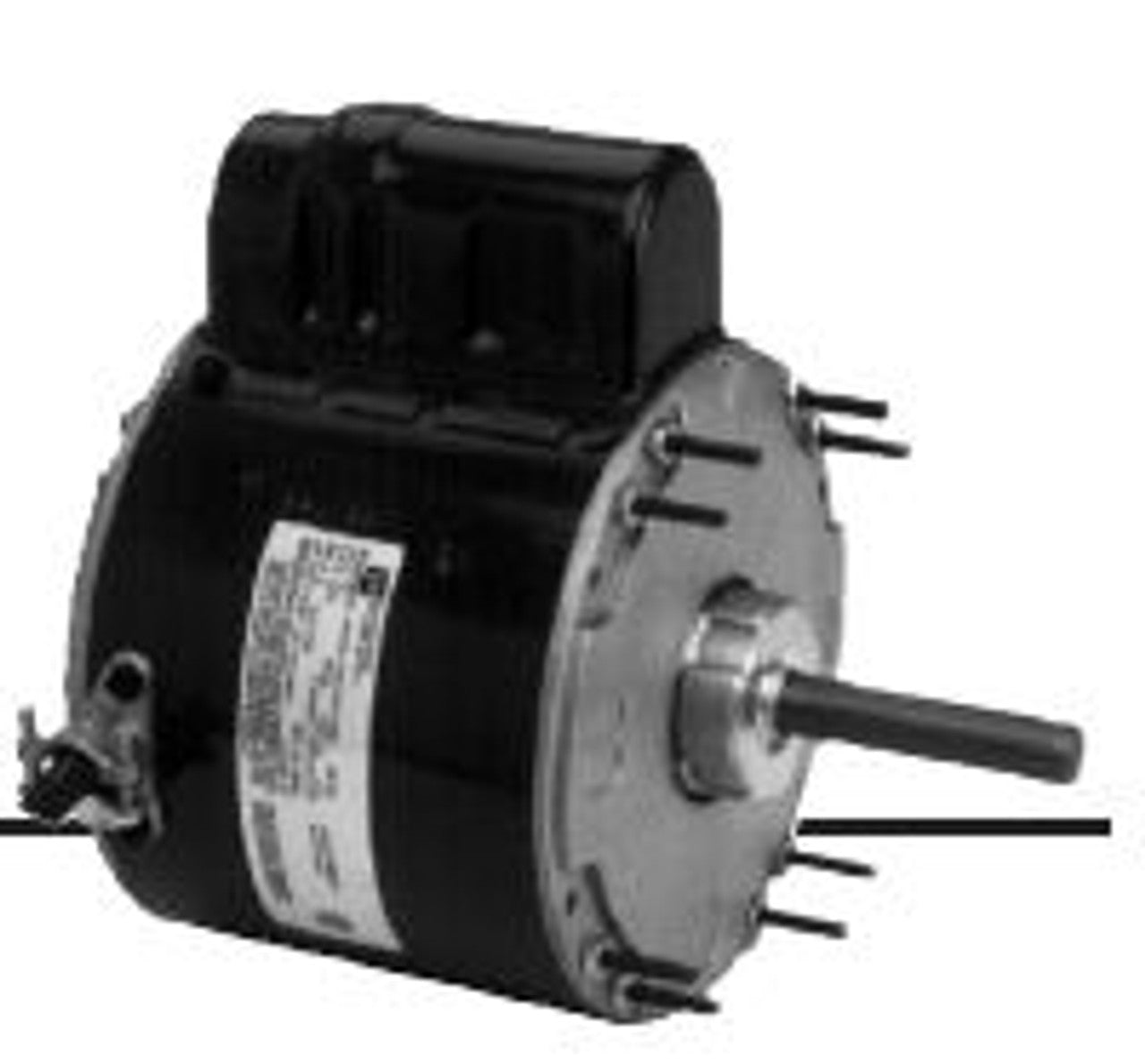

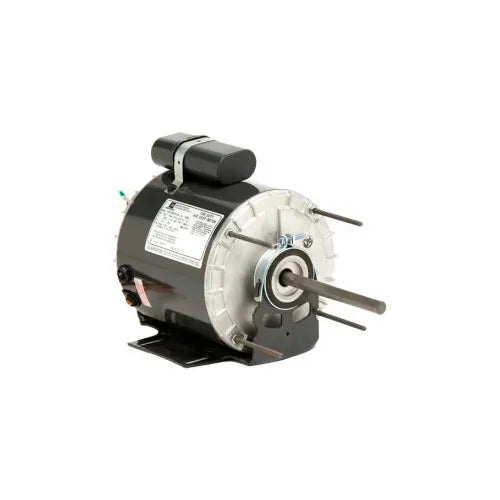

US Motors 1810 Unit Heater Fan Motor 1/2 HP

Product Description

The US Motors 1810 is a single-phase, one-half horsepower motor intended for unit heater fan applications. It operates at two hundred thirty volts and sixty hertz, achieving a rated speed of one thousand seventy-five revolutions per minute. This motor is equipped with a fifty-six Z frame and has a resilient base for secure mounting.

• Designed for unit heater fan applications.
• Rated at one thousand seventy-five RPM.
• Features a resilient base for easy installation.

Product Highlights

The motor has a totally enclosed enclosure, automatic thermal protection, and is suitable for general-purpose use.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer: US Motors (Nidec)

Technical Specifications

• MPN: 1810
• Horsepower: 1/2 HP
• Phase: 1
• Voltage: 230 V
• Hertz: 60 Hz
• Speed (RPM): 1075
• Frame: 56Z
• Enclosure Type: Totally Enclosed TENV
• Mounting: Resilient Base
• Number of Speeds: 2
• Insulation Class: A
• Service Factor: 1
• Rotation: Reversible
• Thermal Protection: Automatic
• Bearings: Ball
• Capacitor: 10MFD/370VAC
