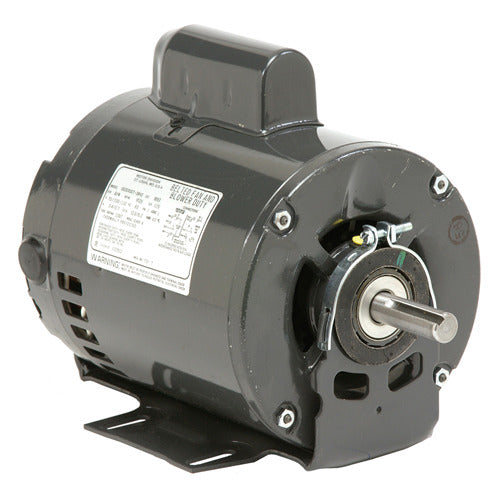

U.S. Motors 1769 | HVAC Single Phase ODP Resilient Motor | 1 HP | 1800 RPM

Product Description

The U.S. Motors 1769 is a reliable single-phase motor designed for HVAC applications. With a power output of one horsepower and a rotational speed of 1800 RPM, it is suitable for various fan and blower systems. The motor operates at a voltage range of 115/208-230 volts and features a resilient mount that enhances its stability and functionality.

• Rated at 1 HP for efficient performance.
• Operates at 1800 RPM, ideal for HVAC systems.
• Includes automatic reset thermal protection for safety.

Product Highlights

This motor is built for long-lasting use and designed to meet industry standards for HVAC applications.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 1769

Technical Specifications

• Horsepower: 1 HP
• Voltage Rating: 115/208-230 volts
• RPM: 1800 RPM
• Frame Size: 56
• Phase: Single Phase
• Pole Count: 4
• Weight: 30 LB
• Enclosure: Open Drip Proof (ODP)
• Mounting Type: Resilient Base
• Service Factor: 1.2
