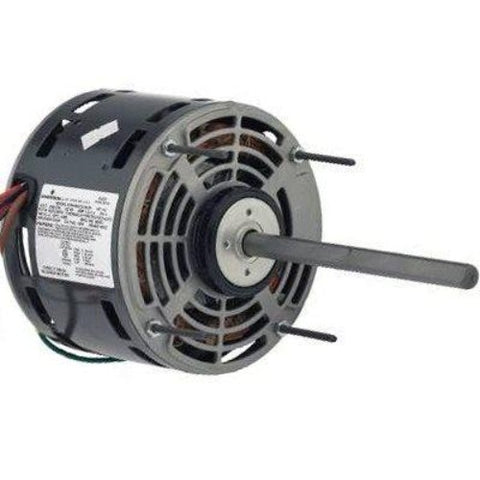

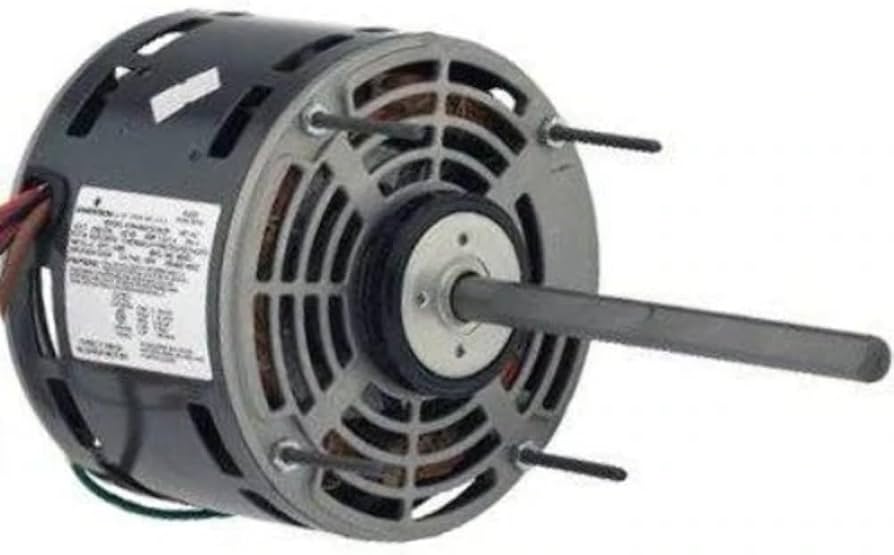

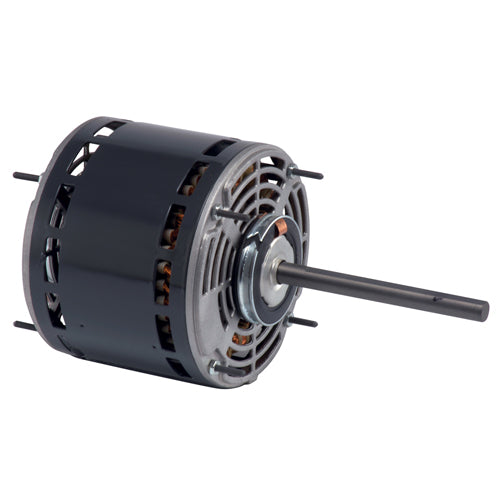

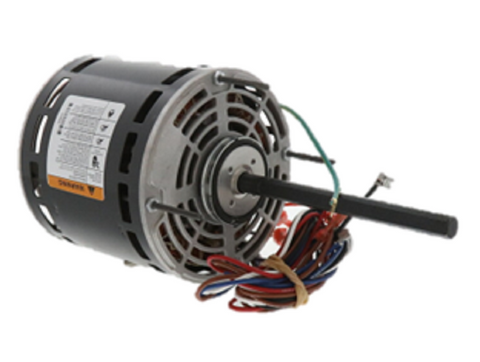

US Motors 1696-CL US MOTORS 3/4 HP Direct Drive Fan Motor

Product Description

The US MOTORS 1696-CL is a 3/4 HP direct drive fan and blower motor ideal for HVAC needs. It operates at one hundred fifteen volts at a speed of one thousand six hundred twenty-five RPM. This motor has a 48Y frame and features an open air-over enclosure. As a permanent split capacitor motor, it is built for continuous operation. It is suitable for both high-speed blowers in air conditioning and low-speed options for heating and air circulation.

• 3/4 HP, 1625 RPM, 1-Phase motor
• Direct drive for fans and blowers
• Open air over enclosure with Class B insulation

Product Highlights

This motor is engineered for efficiency in maintaining indoor air comfort. It provides reliable performance and includes automatic overload protection.

Product Information

Standard Information

• Brand: US MOTORS
• Country of Origin: MEX

Technical Specifications

• Horsepower: 3/4 HP
• RPM: 1625
• Voltage: 115V
• Phase: Single Phase
• Frame: 48Y
• Enclosure: Open Air Over (OAO)
• Hertz: 60 Hz
• Motor Type: PSC (Permanent Split Capacitor)
• Rotation: Counter Clockwise (CCW)
• Insulation Class: B
• Number of Speeds: 3
