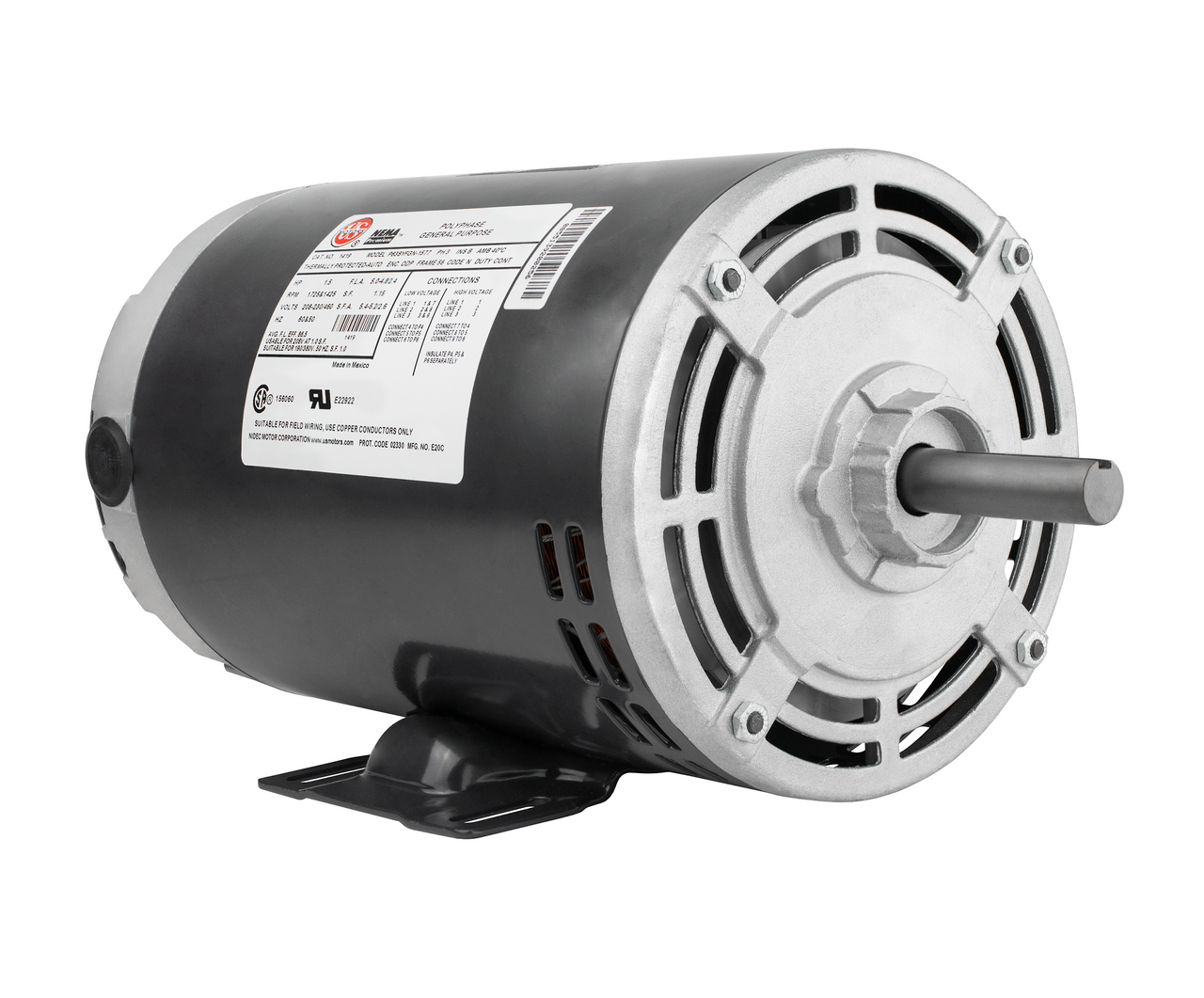

US Motors 1419 Condenser Fan Motor 1.5 HP 3-Phase Replacement MPN 1419

Product Description

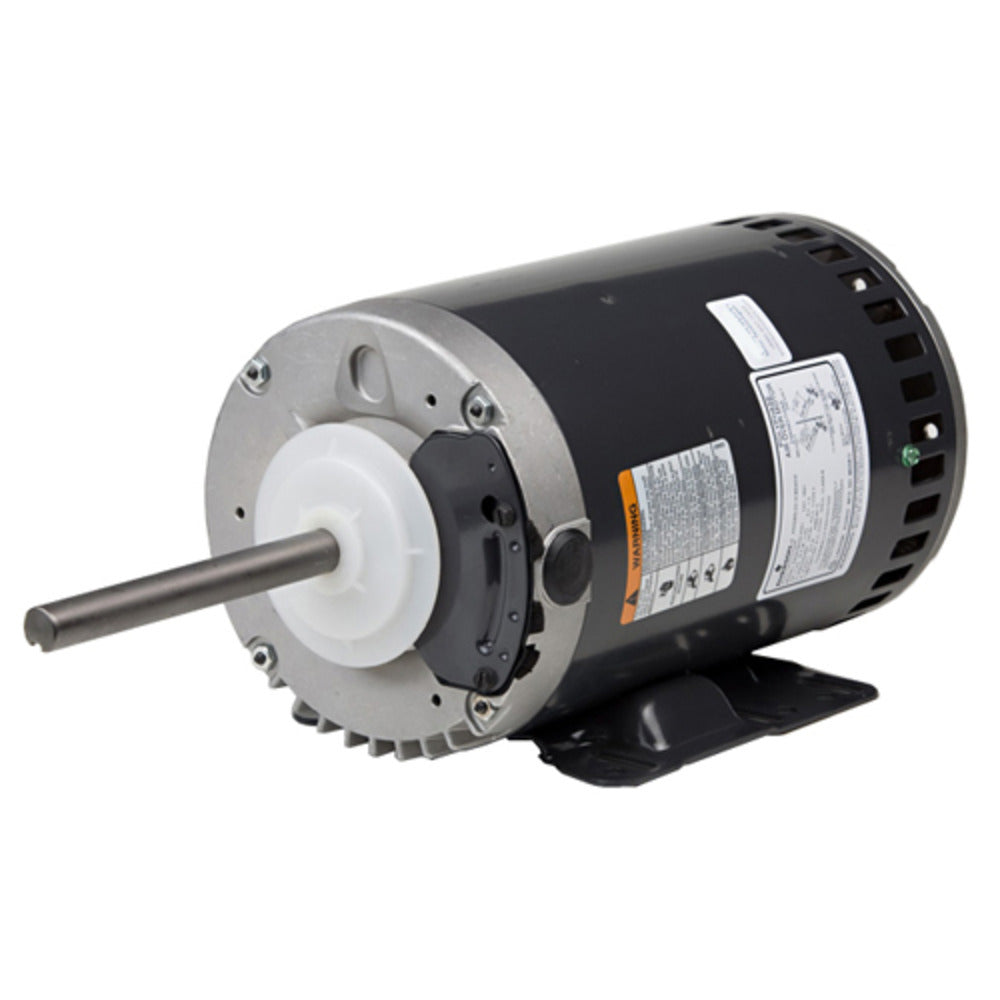

The US Motors 1419 is a three-phase condenser fan motor suited for commercial air conditioning applications. This motor is rated at one point five horsepower and can operate at two speeds: seventeen hundred twenty-five and fourteen hundred twenty-five RPM. Designed for continuous duty, it includes automatic overload protection, ensuring reliable performance.

• Rated for 1.5 horsepower
• Open drip-proof enclosure
• Electrically reversible for flexibility

Product Highlights

This motor features a rigid base for mounting and utilizes ball bearings for smooth operation. The open drip-proof design allows for airflow around the motor while protecting it from moisture.

Product Information

Standard Information

• Brand: US MOTORS
• MPN: 1419

Technical Specifications

• Horsepower: 1.5 hp
• RPM: 1725/1425
• Voltage: 208-230/460 V
• Current: 5.0-4.8/2.4 AMP
• Phase: 3
• Frame: NEMA 56
• Shaft Size: 5/8 x 5
• Service Factor: 1.15
• Duty: Continuous Duty
• Frequency: 50/60 Hz
• Protection: Auto Overload Protection
• Bearings: Ball Bearings
• Insulation: Class B Insulation
• Enclosure: Open Drip Proof
• Mounting: Rigid Base Mounting
• Reversibility: Electrically Reversible
• Overall Length: 12.89 inches
• C-Dimension: 10.90
• Length: 5.667 inches
• Width: 5.625 inches
• Shaft Height: 3.5 inches
• Mounting Hole Center Length: 1.56 inches
• Mounting Hole Center Width: 3.13 inches
• Resilient Ring Diameter: 2.5 inches
