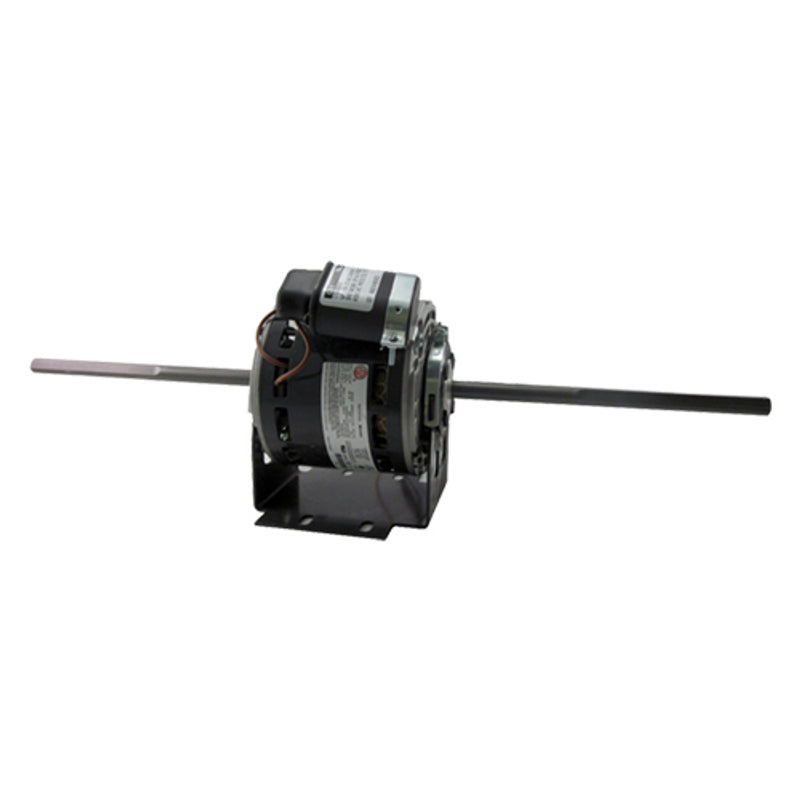

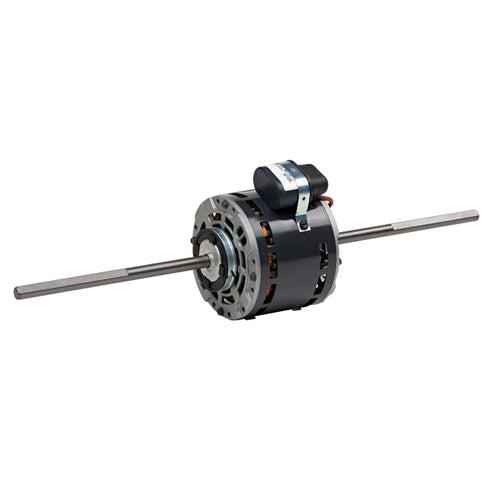

US Motors 1416 Double Shaft Fan and Blower Motor

Product Description

The US Motors 1416 is a double shaft fan and blower motor suitable for direct drive blower applications. This motor operates at 115 volts and delivers one-eighth horsepower at seven hundred seventy-five RPM. It has an open drip-proof enclosure and includes a resilient base for mounting. The motor allows for multi-speed operation and includes a capacitor.

• Designed for double shaft direct drive blower applications.
• Features a permanent split capacitor design.
• Offers multi-speed operation.

Product Highlights

This motor is ideal for HVAC applications and provides efficient airflow.

Product Information

Standard Information

• Brand: U.S. Motors
• Manufacturer: US Motor Nidec Motor Corp

Technical Specifications

• Model: 1416
• Application: Double Shaft Direct Drive Blower
• Enclosure Type: ODP
• Frame Size: 48Y
• Horsepower: 1/8
• Motor Type: Permanent Split Capacitor
• Rotation: CCW Lead End
• RPM: 775
• Voltage: 115 V
• Phase: Single Phase
• Electrical Type: PSC
• Product Type: Double Shaft Fan and Blower Motor
• Diameter: 5.6 inches
• Overload: Auto
• Speeds: 3
• Bearings: SAB / SAB
• Shaft: DBL SHF
