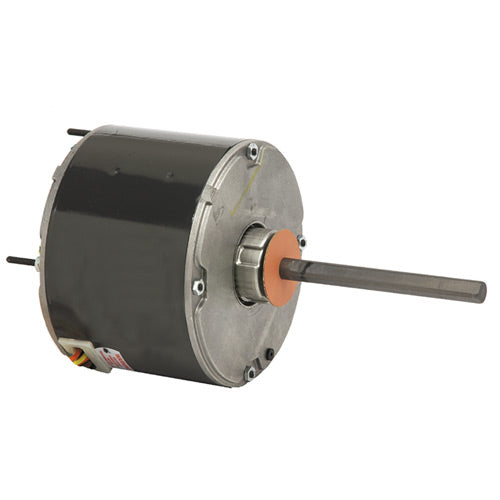

US MOTORS 1412 Condenser Fan Motor 1/6HP Single Speed

Product Description

The US MOTORS 1412 is a condenser fan motor built specifically for cooling applications. This motor features a Totally Enclosed Air Over (TEAO) design for efficient operation. It is a single-phase motor rated at 1/6 horsepower and operates at a steady speed of 825 RPM. The motor is constructed with durable rolled steel and incorporates ball bearings for reliable performance.

• Totally Enclosed Air Over (TEAO) design.
• Operates at a single speed of 825 RPM.
• Rated at 1/6HP.

Product Highlights

This motor is suitable for various condenser applications, ensuring efficient cooling.

Product Information

Standard Information

• Brand: US MOTORS
• Product Type: Condenser Fan Motor

Technical Specifications

• MPN: 1412
• Model: 48Z
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Power: 1/6HP
• Speed: 1 Speed
• RPM: 825
• Phase: Single Phase
• Frame: 48Y
• Electrical Type: PSC
• Diameter: 5.6 inches
• Voltage: 460
• Rotation: CCWLE
• Speeds: 1
• Material: Rolled Steel
• Bearings: Ball / Ball
