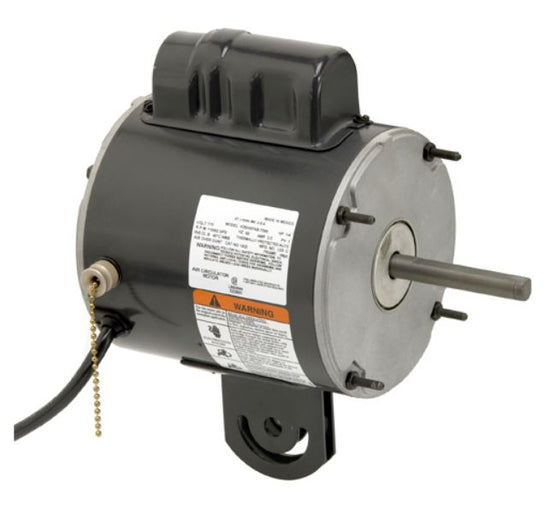

US Motors 1380 Motor 1/2 hp 825 RPM

Product Description

The US Motors 1380 is a reliable 1/2 horsepower motor designed for continuous operation. It runs at a speed of eight hundred twenty-five RPM and is compatible with both one hundred fifteen and two hundred thirty volts, drawing a current of six point nine or three point four five amps. This motor has a totally enclosed air over (TEAO) design, making it suitable for various applications including air circulators and direct drive exhaust vent fans.

• Horsepower: 1/2 hp
• Speed: 825 RPM
• Automatic reset thermal overload protection included

Product Highlights

Designed for durability and efficiency, the US Motors 1380 motor features an automatic reset thermal overload protection system. Its TEAO enclosure provides additional protection in challenging environments.

Product Information

Standard Information

• Manufacturer: US Motor Nidec Motor Corp
• Mounting Type: Compatible with yoke mount and pedestal mount

Technical Specifications

• Horsepower: 1/2 hp
• Speed: 825 RPM
• Current Rating: 6.9/3.45 amps at 115/230V
• Shaft Size: 5/8 inches x 2.375 inches
• Rotation: Reversible
• Diameter: 5.6 inches
• Case Length: 7.0 inches
• Bearings: Ball bearings
• Enclosure: Totally Enclosed Air Over (TEAO)
• Insulation Class: Class B
• Service Factor: 1.0
