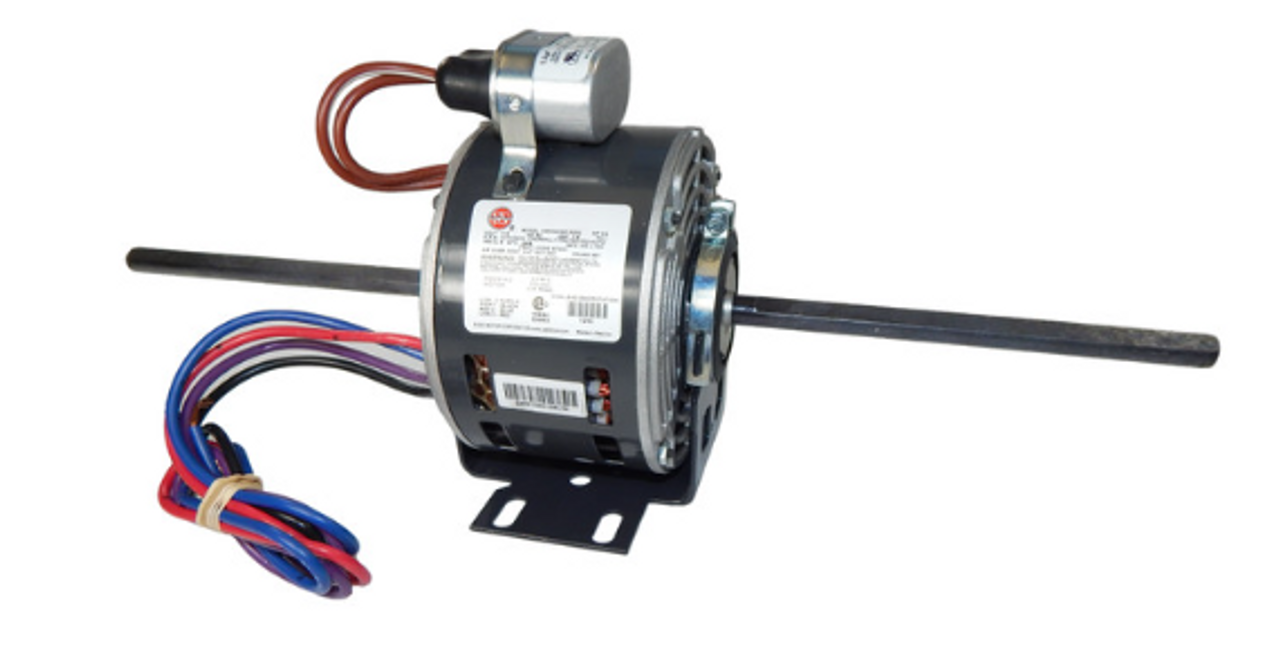

US Motors 1240 PSC Double Shafted Direct Drive Fan and Blower Motor

Product Description

The US Motors 1240 is a PSC double-shafted motor tailored for fan and blower applications. This motor runs on 115 volts and sixty hertz, providing single-phase power input. With a speed rating of 1075 revolutions per minute, it features an open air over enclosure and includes automatic thermal protection for added safety.

• Permanently split capacitor design for efficient operation
• Suitable for direct drive setups in fan and blower systems
• Rated speed of 1075 RPM

Product Highlights

The US Motors 1240 combines reliability with performance, making it ideal for HVAC professionals and contractors.

Product Information

Standard Information

• Brand: US Motors
• MPN: 1240

Technical Specifications

• Product Type: PSC (Permanent Split Capacitor)
• Application: Fan and Blower
• Horsepower: 1/6 HP
• Voltage: 115 V
• Frequency: 60 Hz
• Phase: 1
• RPM: 1075
• Number of Speeds: 3
• Enclosure Type: Open Air Over (OAO)
• Mounting Type: Base
• Rotation: Double Shafted
• Service Factor: 1.00
• Thermal Protection: Automatic
• Insulation Class: B
• Maximum Ambient Temperature: 40° C
• Amps: 2.9
• Bearings: Ball
• Efficiency: 49%
• Weight: 18 lbs
• Capacitor: 5MFD/370VAC
