US MOTORS 1218 PSC Condenser Fan Motor

Product Description

The US MOTORS 1218 is a single-phase, 3-speed PSC condenser fan motor. This model is suitable for condenser fan applications within packaged terminal air conditioners and heat pumps. The motor operates at one hundred fifteen volts and sixty hertz, delivering a horsepower of one-thirtieth with a speed of eleven hundred RPM.

• Single-phase, 3-speed design
• Automatic thermal protection features
• Open air over enclosure for optimal cooling

Product Highlights

This motor is built for reliable performance in HVAC systems, ensuring efficient operation in various environments.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer: Nidec-US

Technical Specifications

• MPN: 1218
• Motor HP: 1/30 HP
• RPM: 1100
• Voltage: 115 VAC
• Cycle/Hertz: 60 Hz
• Phase: Single
• Frame: 42Y
• Full Load Amps: 0.73
• Service Factor: 1
• Bearing Type: Ball
• Insulation Class: B
• Enclosure Type: Open Air Over (OAO)
• Rotation: Counter Clockwise (CCW)
• Shaft Diameter: 0.5 inches
• Shaft Length: 7 inches
• Height: 8.625 inches
• Length: 12.5 inches
• Width: 8.625 inches
• Weight: 7 lbs.
• Capacitor MFD μF: 7.5
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 40°C

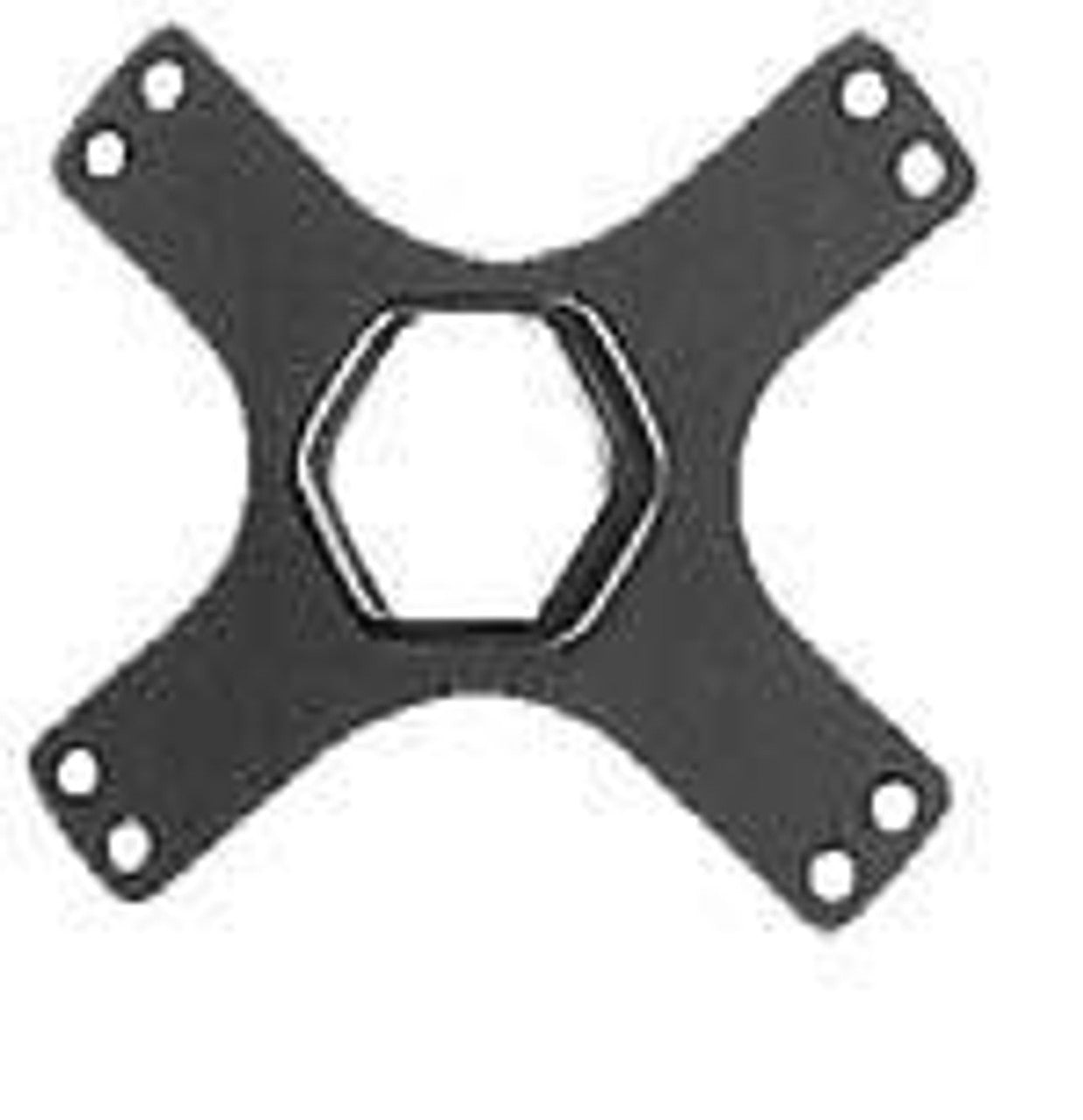

• Mounting: Bracket
• Duty: Continuous Running Duty
