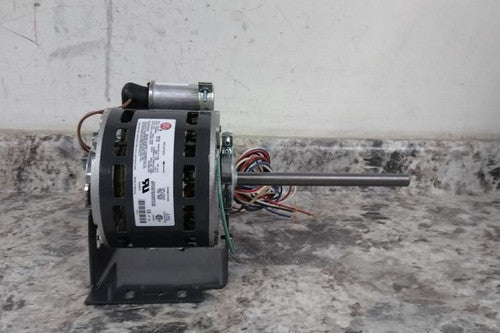

US Motors 1211 Direct Drive Centrifugal Blower Motor

Product Description

The US Motors 1211 is a direct drive centrifugal blower motor ideal for continuous duty applications. This motor utilizes a permanent split capacitor design and features an open air-over enclosure, ensuring reliable operation. It functions on an input voltage of one hundred fifteen to one hundred twenty-seven volts AC and has a frequency of sixty Hertz. With a nameplate RPM of one thousand three hundred seventy-five, this motor includes automatic thermal protection and class B insulation.

• HP: 1/12
• Phase: Single
• Frame: 42

Product Highlights

This motor is designed for efficiency and longevity in demanding environments.

Product Information

Standard Information

• Item: Direct Drive Centrifugal Blower Motor
• Duty Cycle: Continuous

Technical Specifications

• Motor Design: Permanent Split Capacitor
• Motor Enclosure Design: Open Air-Over
• Number of Speeds: 3
• Horsepower: 1/12
• Nameplate RPM: 1,375
• Input Voltage: 115-127VAC
• Frequency: 60 Hz
• Full Load Amps: 1.35 A
• Phase: Single
• Motor Shaft Rotation: CCW
• Shaft Diameter: 1/2 inches
• Shaft Length: 6-1/2 inches
• Overall Length: 11-3/8 inches
• Body Diameter: 5 inches
• Weight: 6.6 lb
