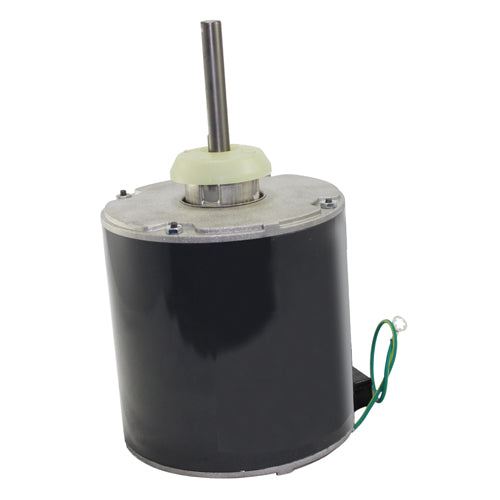

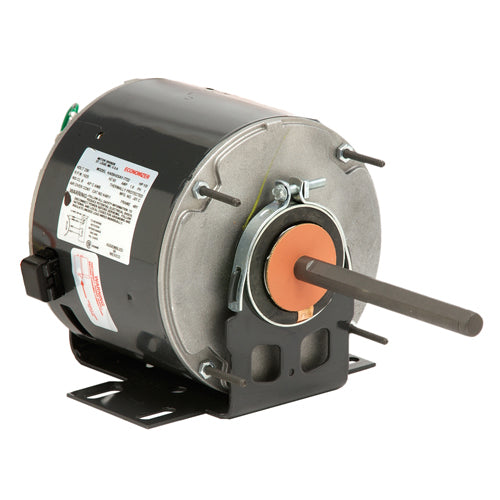

US Motors 1128 Condenser Fan Motor 0.5 HP 460V

Product Description

The US Motors 1128 is a single-phase condenser fan motor suitable for HVAC applications. It operates effectively in condenser cooling fan setups. The motor features a permanent split capacitor design, ensuring reliability and efficiency in continuous duty operations.

• 0.5 HP, 460V single-phase motor
• Operates at 1075 RPM
• Open air over enclosure

Product Highlights

This motor is ideal for use in both stud mounting and horizontal configurations. Its design allows for efficient heat dissipation, which is critical in condenser applications.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer Part Number: 1128

Technical Specifications

• Motor HP: 0.5 HP
• Voltage: 460 VAC
• RPM: 1075
• Motor Type: PSC (Permanent Split Capacitor)
• Phase: Single
• Enclosure: Open Air Over (OAO)
• Duty: Continuous Running
• Frame Size: 48Y
• Rotation: Counter Clockwise (CCW)
• Shaft Diameter: 0.5 inches
• Shaft Length: 4 inches
• Insulation Class: F
• Service Factor: 1
• Bearing Type: Ball
• Full Load Amps: 1.18
• Cycle/Hertz: 60 Hz
• Capacitor MFD: 10
• Lead Length: 10 inches
• Height: 5.63 inches
• Width: 5.63 inches
• Length: 5.8 inches
• Weight: 20 lbs
• Protection: Yes
