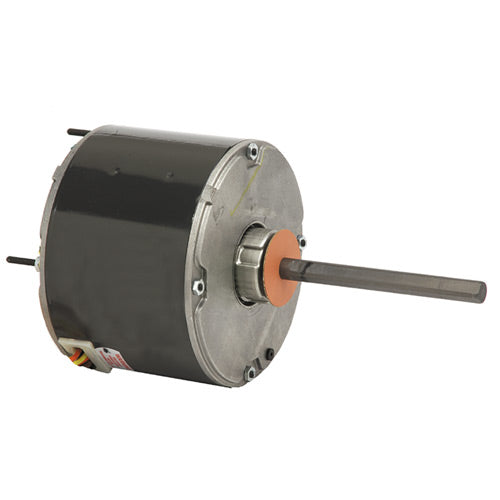

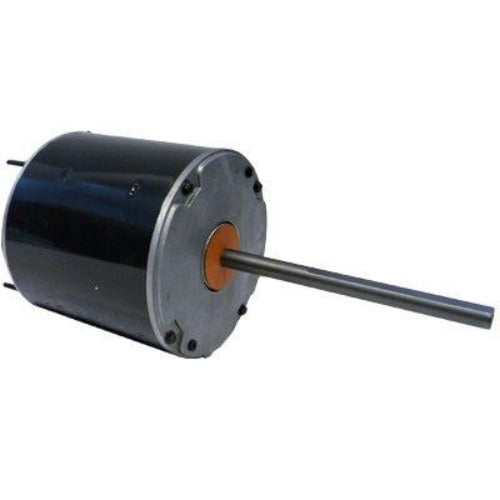

US Motors 1098 Condenser Fan Motor 1/2 HP

Product Description

The US MOTORS 1098 is a condenser fan motor with a power of one-half horsepower designed for air-over applications. Operating at five hundred seventy-five volts and sixty hertz, it has a single speed of one thousand seventy-five RPM.

• Totally enclosed design
• Automatic thermal protection
• Reversible rotation

Product Highlights

This permanent split capacitor motor has ball bearings and is suitable for various HVAC applications. Its design allows for easy installation and reliable performance, making it ideal for trade professionals.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 1098

Technical Specifications

• Horsepower: 0.5
• Kilowatts: 0.4
• Motor Type: Permanent Split Capacitor
• Motor Enclosure: Enclosed
• RPM: 1075
• Number of Speeds: 1
• Frequency: 60 Hz
• Input Voltage: 575 V
• Stator Diameter: 5.5 inches
• Poles: 6
• Shaft End Bearing: 6203
• Opposite End Bearing: 6203
• Rotation: Reversible
• Capacitor Rating: 10MFD-370V
• Thermal Protection: Automatic Reset
• Breakdown Torque: 52.08 oz-ft
• Locked Rotor Torque: 13.05 oz-ft
• Insulation Class: B
• Locked Rotor Amps: 2.11
• Weight: 18 lbs
• Phase: 1
• Ambient Temperature: 70°C
• Shaft Dimensions: 1/2 x 5.00 inches
• Frame Size: 48
• Length: 5.56 inches
