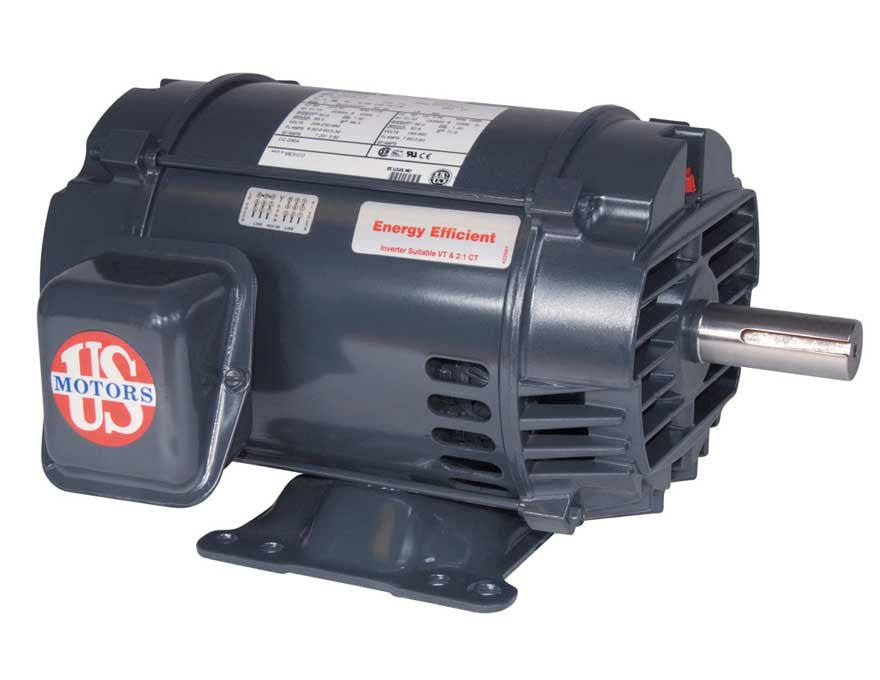

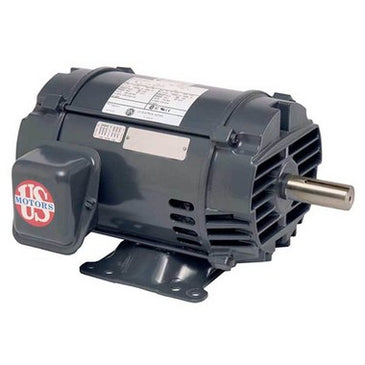

US Motor D2P2D General Purpose Motor 2 HP 3-Phase

Product Description

The US Motors D2P2D is a two horsepower general purpose motor. It is designed for three-phase power systems and operates on voltages of two hundred eight to two hundred thirty or four hundred sixty VAC at fifty or sixty hertz. With a speed of one thousand seven hundred forty-five RPM, it is ideal for various applications.

• Operates on three-phase power at 208-230/460 VAC and delivers two horsepower.
• Features an open drip proof enclosure with a rigid base for mounting.
• Includes Class F insulation and is inverter compatible.

Product Highlights

This motor supports continuous running duty and is suitable for numerous applications where reliable performance is required.

Product Information

Standard Information

• Manufacturer: US Motors (Nidec)
• Part Number: D2P2D

Technical Specifications

• Horsepower: 2 HP
• Phase: 3
• Frame: 145T
• Voltage: 208-230/460 VAC
• Hertz: 50/60 Hz
• Speed (RPM): 1745
• Enclosure: Open Drip Proof (ODP)
• Mounting: Foot Mount
• Construction: Rolled Steel
• Service Factor: 1.15
• Weight: 40 lbs
• Dimensions: 12.80 inches length, 6.44 inches width, 6.44 inches height
• Shaft Diameter: 0.875 inches
