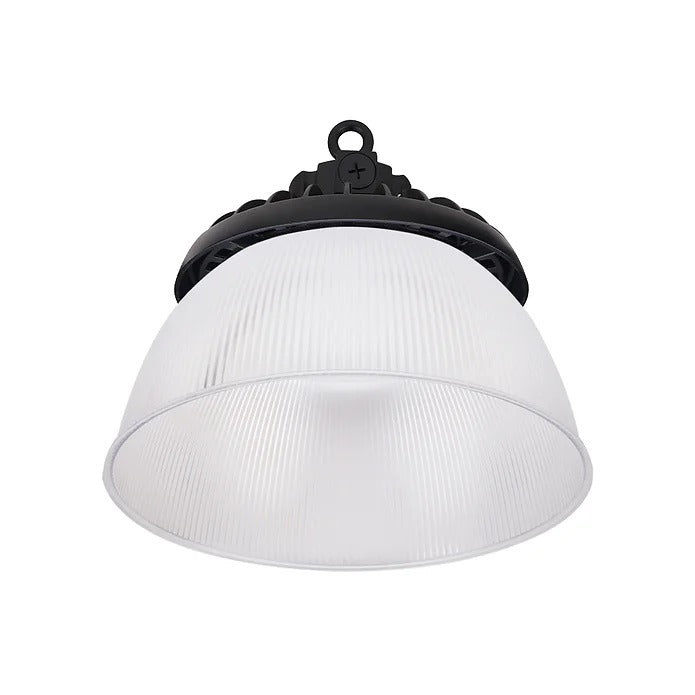

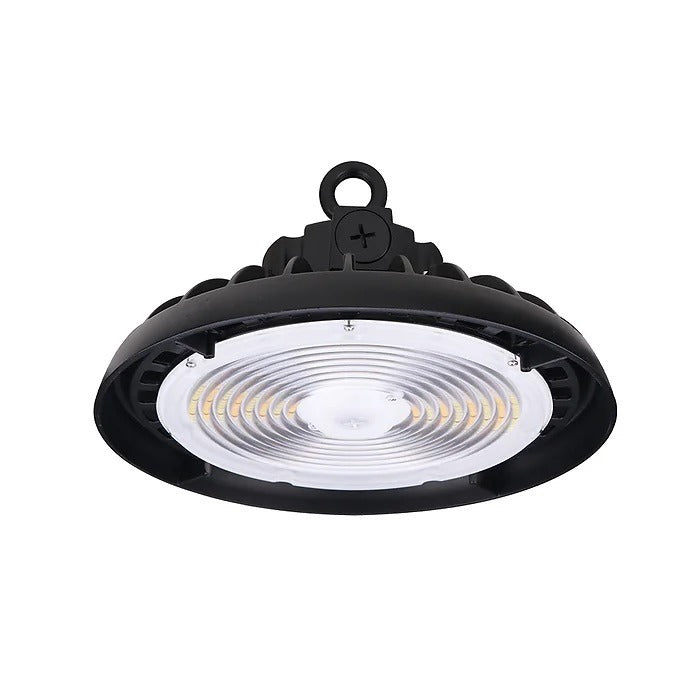

Us Led EBI2-1-UNVL-90-SCCT ExsaBay Infinity LED round high bay light fixture 240 Watt

Product Description

The US LED EBI2-1-UNVL-90-SCCT ExsaBay Infinity LED round high bay is designed as an energy-efficient LED high bay solution to replace traditional HID and fluorescent systems. Its compact design integrates the driver into the housing. The die-cast aluminum housing ensures durability and optimized thermal management. With selectable wattage and color temperature, the EBI2 delivers exceptional illumination with a 90° beam angle.

• Energy-efficient LED high bay solution to replace legacy fluorescent or HID systems.
• Compact design that integrates the driver into the housing for a streamlined aesthetic.
• Die-cast aluminum housing engineered to optimize thermal management and accelerate heat dissipation.

Product Highlights

This LED high bay light fixture features selectable wattage and color temperature, a 90° beam angle, and up to 149,000 hours of lumen maintenance.

Product Information

Standard Information

• Brand: US LED
• Manufacturer Part Number: EBI2-1-UNVL-90-SCCT-E-WH-N

Technical Specifications

• Part Number#: EBI2-1-UNVL-90-SCCT-D-WH-N
• Type of Area: Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Retail
• Color Temp: Selectable CCT
• Lamp Life: 150,000 Hours
• Lumen Output: 10,875 - 21,510
• Wattage: 240 Watt
• Ballast Start Type: Instant Start
• Certifications: CSA, CUL Listed, Dimmable, IP65 / IP66 / IP67, ROHS, UL Listed
• CRI: ">=80"
• Width: 12.2" - 13"
• Height: 6.06" - 8.3"
• Dimmable: Yes
• Minimum Start Temperature: -40 Deg F
• Voltage: Multivolt 120V-277V
• Weight Each: 4.6 - 6.3 lbs
• Manufacturer: USLED
• Technology: LED - New Fixture
