US Aluminum CSCT6012L3 Goodman CSCT 4.0 - 5.0 Ton Horizontal Slab Coil

Product Description

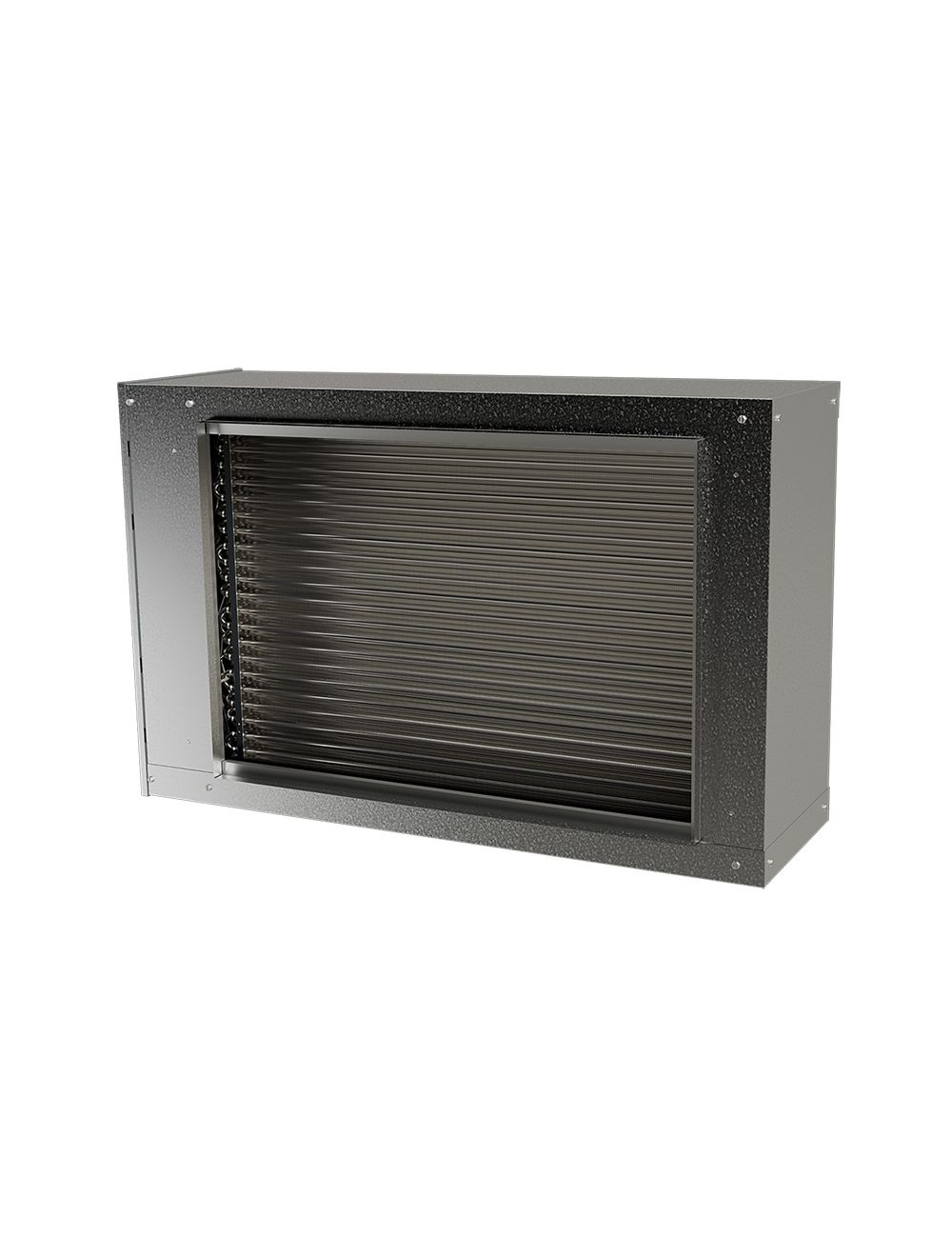

The US Aluminum CSCT6012L3 Goodman CSCT is an evaporator coil suitable for horizontal airflow applications. This coil uses an all-aluminum design that enhances durability and improves heat transfer efficiency. The manufacturer conducts two pressure tests on each coil before shipping, ensuring quality.

• All-aluminum construction for durability and efficiency.
• Includes an internal thermostatic expansion valve for improved operation.
• Optimized for R-32 refrigerant for better performance.

Product Highlights

This evaporator coil provides effective cooling for residential use, designed specifically for a horizontal configuration.

Product Information

Standard Information

• Type: Evaporator Coil
• Product Line: CSCT

Technical Specifications

• Refrigerant Type: R-32
• Casing: Cased
• Style: Slab Coil
• Configuration: Horizontal
• TXV Installed: Yes
• Capacity: 4.0 - 5.0 Tons
• Cooling BTU: 60000
• Nominal Minimum Cooling Capacity: 48000 BTU
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 39.5 Inches
• Product Height: 25 Inches
• Product Width: 39.5 Inches
• Product Depth: 12 Inches
• Product Weight: 43 Pounds
• Shipping Weight: 58 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 12 Limited Years
• Model Number: CSCT6012L3
• Nominal Capacity: 4-5 tons
• Service Valve: 3/8 Liquid, 7/8 Suction
