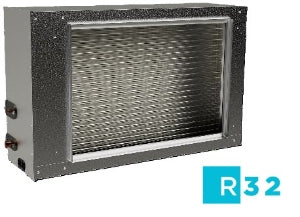

US ALUMINUM CSCT2412S3 Horizontal Slab Coil Cased R-32

Product Description

The US ALUMINUM CSCT2412S3 is a cased slab coil designed for horizontal airflow applications. This unit is constructed with all-aluminum material to enhance durability and heat transfer efficiency. It features an internal thermostatic expansion valve (TXV) and is optimized for R-32 refrigerant use. Each unit is pressure tested for reliability before shipping.

• Cased slab coil for horizontal airflow.
• All-aluminum construction for improved durability.
• Optimized for R-32 refrigerant.

Product Highlights

This product provides effective cooling solutions in various HVAC applications.

Product Information

Standard Information

• Type: Evaporator Coil
• Product Line: CSCT

Technical Specifications

• Refrigerant Type: R-32
• Casing: Cased
• Style: Slab Coil
• Configuration: Horizontal
• TXV Installed: Yes
• Capacity: 1.5 - 2.0 Tons
• Cooling BTU: 24000
• Nominal Minimum Cooling Capacity: 18000 BTU
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 25.5 Inches
• Product Height: 25 Inches
• Product Width: 25.5 Inches
• Product Depth: 12 Inches
• Product Weight: 20 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 12 Limited Years
