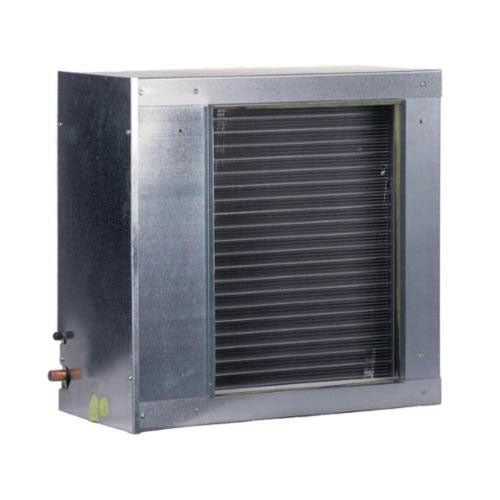

US ALUMINUM CSCF4860N6 Horizontal Slab Evaporator Coil

Product Description

The US Aluminum CSCF4860N6 is a horizontal slab evaporator coil engineered for cooling and heat pump systems. It is designed to optimize airflow for efficient temperature control. The fully aluminum construction enhances durability and thermal conductivity, making it suitable for demanding environments.

• Horizontal airflow design
• All-aluminum construction
• Compatible with R-410A refrigerant

Product Highlights

This evaporator coil includes a thermoplastic drain pan with secondary drain connections and features foil-faced insulation that minimizes cabinet condensation, ensuring optimal performance.

Product Information

Standard Information

• Product Category: Evaporator Coil
• Casing: Cased

Technical Specifications

• Product Line: CSCF
• Refrigerant Type: R-410A
• Style: Slab Coil
• Configuration: Horizontal
• Capacity: 4.0 - 5.0 Tons
• Cooling BTU: 60000
• Minimum Cooling Capacity: 48000 BTU
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 25 Inches
• Product Width: 12 Inches
• Product Depth: 39.5 Inches
• Product Weight: 60 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• SEER Rating: 13
• Material: Aluminum
