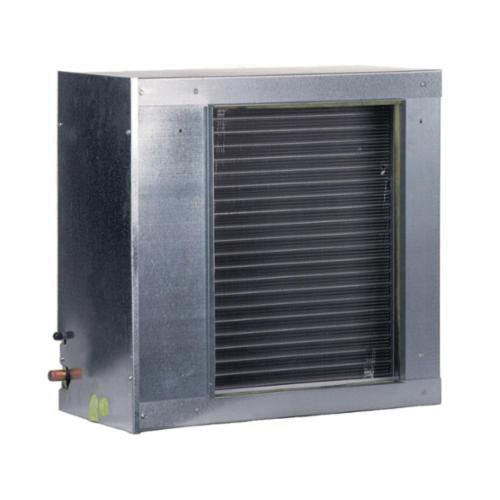

US Aluminum CSCF3036N6 Horizontal Slab Evaporator Coil

Product Description

The US Aluminum CSCF3036N6 is a horizontal slab evaporator coil suitable for split system air conditioners and heat pumps. It includes an all-aluminum coil, a check flowrater expansion device, and copper sweat connections. The product features a rust-resistant, high-temperature, thermoplastic drain pan with a secondary drain connection. Its cabinet is made with a galvanized-steel finish and foil-faced insulation to minimize condensation.

• Designed for both cooling and heat pump applications.
• Includes a rust-resistant drain pan.
• AHRI certified and ETL listed.

Product Highlights

Product Information

Standard Information

• Product Category: Evaporator Coil
• Product Line: CSCF

Technical Specifications

• Refrigerant Type: R-410A
• Casing: Cased
• Style: Slab Coil
• Configuration: Horizontal
• Capacity: 2.5 - 3.0 Tons
• Cooling BTU: 36000
• Nominal Minimum Cooling Capacity: 30000 BTU
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 25 Inches
• Product Width: 12 Inches
• Product Depth: 33.5 Inches
• Product Weight: 53 Pounds
• Warranty: 5 Years
• Evaporator Coil Face Area: 4.67 ft²
• Piston Size: 0.074 Inches
• Plenum Opening Depth: 24 Inches
• Plenum Opening Height: 21 Inches
