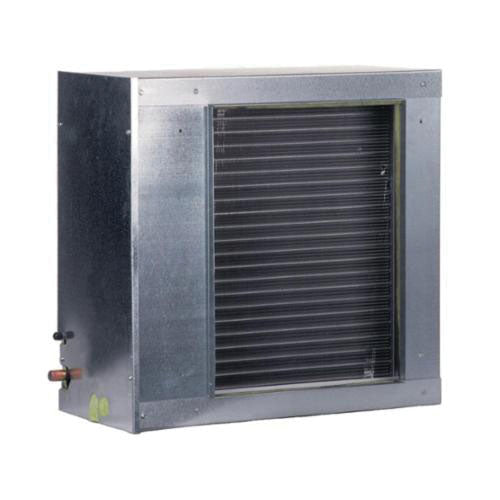

US ALUMINUM CSCF1824N6 Horizontal Slab Evaporator Coil

Product Description

The US ALUMINUM CSCF1824N6 is a horizontal slab evaporator coil for split system air conditioners and heat pumps. This unit features all-aluminum coil construction, improving durability and efficiency. The galvanized-steel cabinet enhances protection against weather elements. It supports both R-22 and R-410A refrigerants, making it versatile for different HVAC systems.

• All-aluminum evaporator coil
• Rust-resistant thermoplastic drain pan
• Foil-faced insulation to minimize cabinet condensation

Product Highlights

This evaporator coil is designed for horizontal airflow applications, ensuring effective cooling performance.

Product Information

Standard Information

• Manufacturer Part Number: CSCF1824N6
• Product Category: Evaporator Coil

Technical Specifications

• Coil Type: Cased
• Configuration: Horizontal
• Refrigerant Type: R-22, R-410A
• Cooling Capacity: 1.5 - 2.0 Tons
• Cooling BTU: 24000 BTU
• Minimum Cooling Capacity: 18000 BTU
• Liquid Connection Size: 3/8 Inch
• Suction Connection Size: 3/4 Inch
• Coil Width: 12 Inches
• Coil Height: 25 Inches
• Coil Depth: 25.5 Inches
• Product Weight: 43 Pounds
• SEER Rating: 13
• Material: Aluminum
• TXV Included: No
• AHRI Certified: Yes
• ETL Listed: Yes
