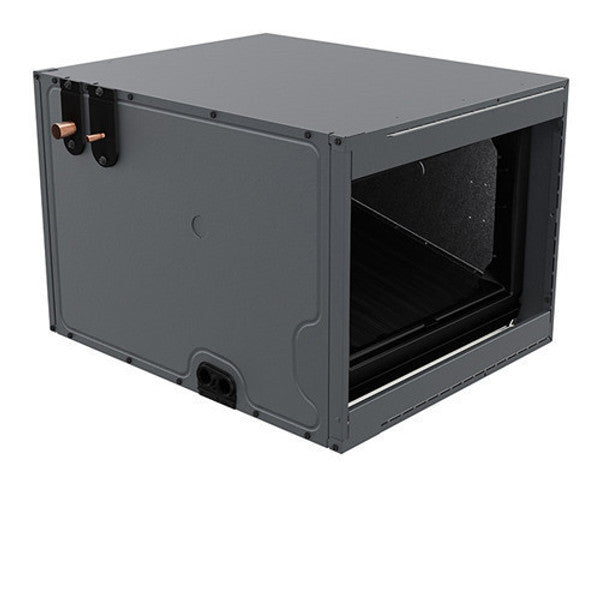

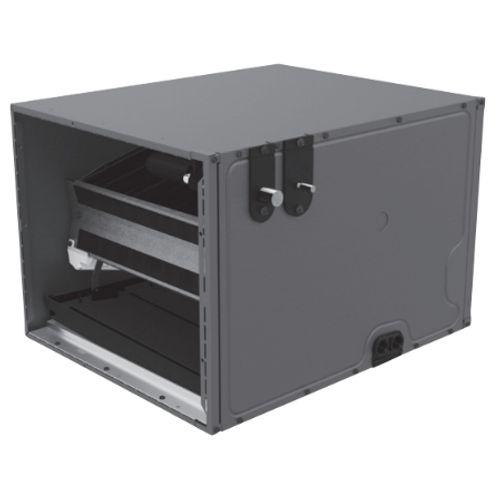

US Aluminum CHPTA6030D3 5.0 Ton Horizontal A Coil

Product Description

The US Aluminum CHPTA6030D3 is a 5.0 ton horizontal A coil. It is designed for horizontal airflow applications and is optimized for R-32 refrigerant. This coil includes a factory-installed thermal expansion valve (TXV) and is housed in a durable cabinet with a thermoplastic drain pan.

• Designed for horizontal airflow
• Optimized for R-32 refrigerant
• Includes factory-installed TXV

Product Highlights

The US Aluminum CHPTA6030D3 coil provides reliable cooling performance and efficient energy use for HVAC systems.

Product Information

Standard Information

• Brand: US Aluminum
• Model Number: CHPTA6030D3

Technical Specifications

• Cooling Capacity (BTU): 60000 BTU
• Cooling Capacity (Tons): 5.0 Ton
• Refrigerant Type: R-32
• Coil Type: A Coil
• Airflow Orientation: Horizontal
• Casing: Cased
• TXV Installed: Yes
• Suction Line Diameter: 7/8 Inch
• Liquid Line Connection Size: 3/8 Inch
• Product Width: 30 Inches
• Product Depth: 21 Inches
• Product Height: 24.5 Inches
• Cabinet Width: 24.5 Inches
• Product Weight: 67 Pounds
• Certifications: AHRI, ETL, ISO
• Cabinet Material: Galvanized steel
• Parts Warranty: 10 Limited Years
