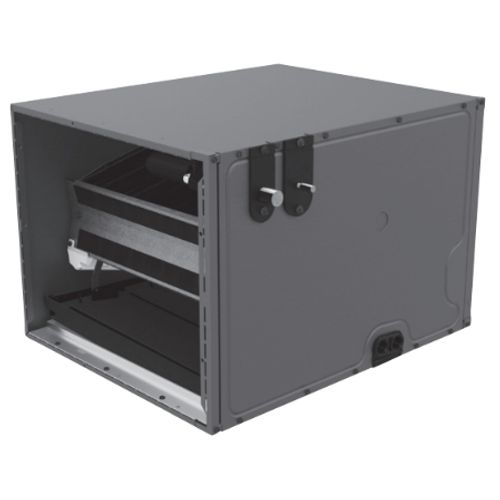

US Aluminum CHPTA4230C3 Evaporator Coil 3.5 Ton

Product Description

The US Aluminum CHPTA4230C3 is a 3.5-ton evaporator coil designed for horizontal airflow applications. Its all-aluminum construction enhances durability and heat transfer efficiency. This unit is optimized for use with R-32 refrigerant and comes equipped with a factory-installed thermal expansion valve (TXV). The thermoplastic drain pan includes secondary drain connections, and the galvanized cabinet features a leather-grain embossed finish. This evaporator coil is suitable for both cooling and heat pump systems.

• All-aluminum evaporator coil optimized for R-32 refrigerant.
• Includes a factory-installed thermal expansion valve (TXV).
• Certified by AHRI and ETL.

Product Highlights

The evaporator coil provides reliable performance in a compact design, effectively handling high cooling loads.

Product Information

Standard Information

• Brand: US Aluminum
• MPN: CHPTA4230C3

Technical Specifications

• Product Type: Evaporator Coil
• Product Line: CHPTA
• Configuration: Horizontal
• Cooling Capacity: 3.5 Ton
• Refrigerant Type: R-32
• Liquid Line Size: 3/8 Inch
• Suction Line Size: 7/8 Inch
• Dimensions: 30 W x 21 D x 21 H Inches
• Weight: 55 Pounds
• Certifications: AHRI, ETL, ISO
• Warranty: 10 Year Parts
