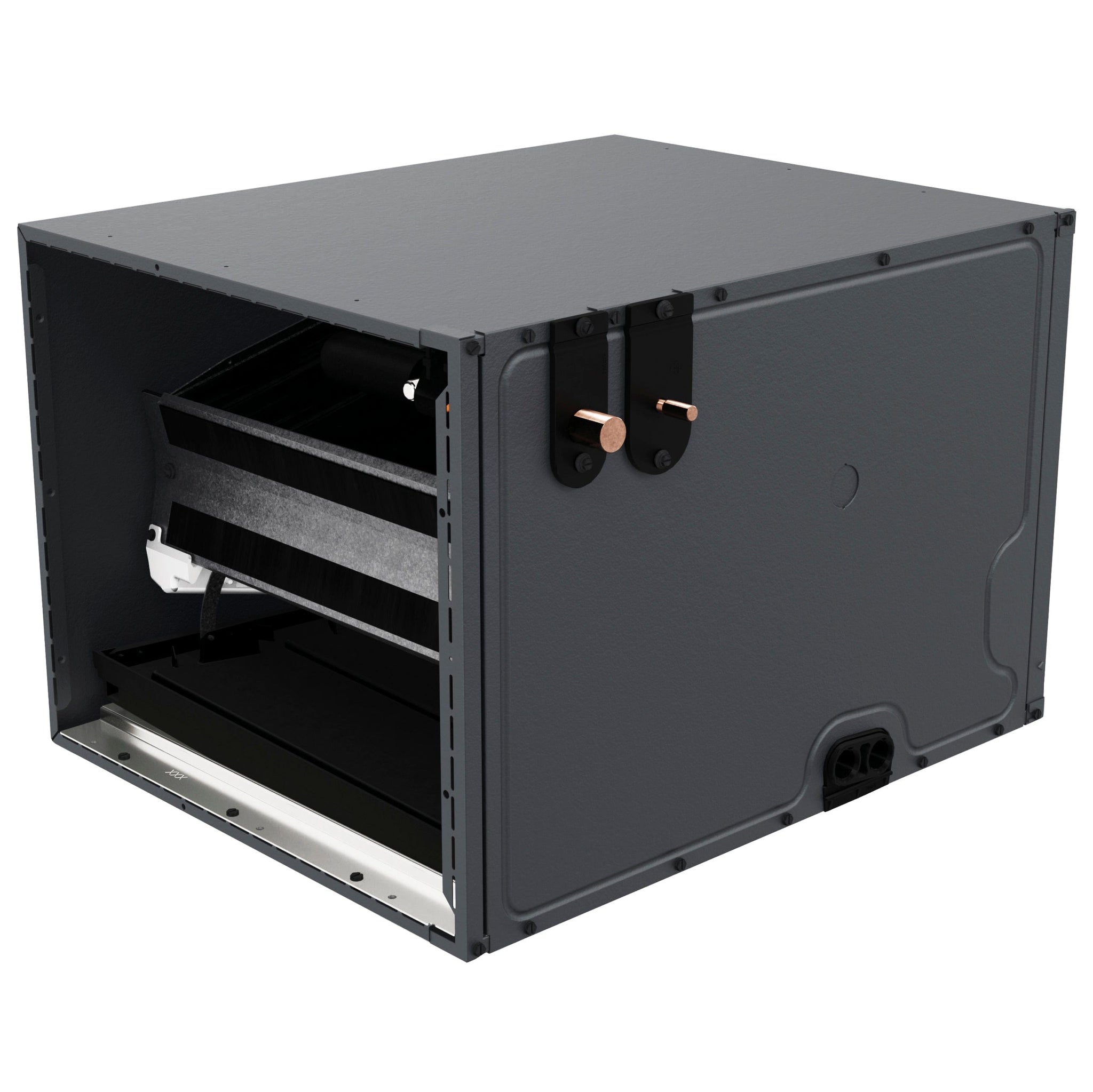

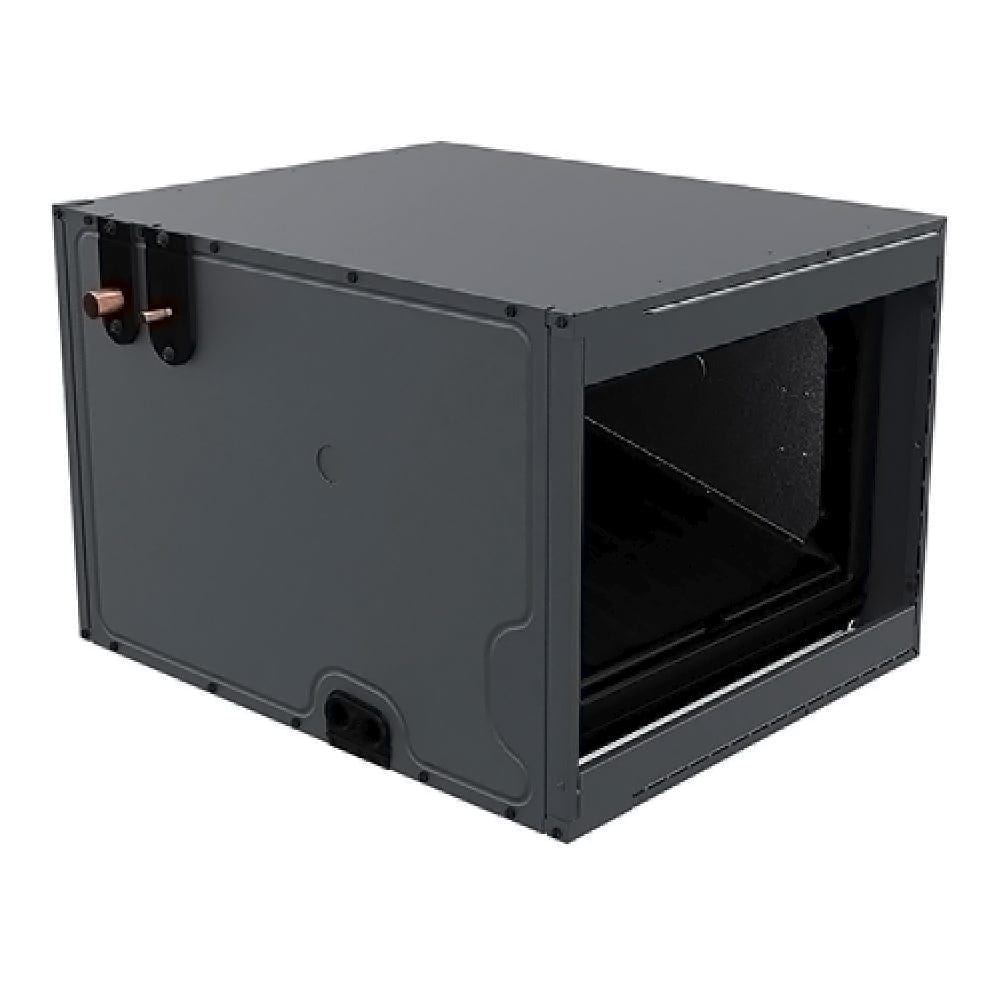

US Aluminum CHPTA3026C3 Evaporator Coil 2.5 Ton Horizontal Cased A Coil

Product Description

The US Aluminum CHPTA3026C3 is a two point five ton evaporator coil suitable for split system air conditioners and heat pumps. This cased A coil is built for horizontal airflow applications. It is made from all-aluminum materials for better durability and heat transfer. The coil is designed to work effectively with R-32 refrigerant and includes a factory-installed thermostatic expansion valve (TXV).

• All-aluminum evaporator coil construction
• Designed for horizontal airflow applications
• Factory-installed thermostatic expansion valve (TXV)

Product Highlights

The CHPTA3026C3 model provides efficient cooling with a capacity of thirty thousand BTU. Its construction and design make it a reliable choice for HVAC systems.

Product Information

Standard Information

• Model Number: CHPTA3026C3
• Product Line: CHPTA

Technical Specifications

• Type: Evaporator Coil
• Configuration: Horizontal
• Casing: Cased
• Coil Type: A Coil
• Refrigerant Type: R-32
• Cooling Capacity: 2.5 Tons
• Cooling BTU: 30000 BTU
• TXV Installed: Yes
• Suction Line Size: seven eighths inch
• Liquid Line Size: three eighths inch
• Cabinet Width: twenty one inches
• Product Width: twenty six inches
• Product Height: twenty one inches
• Product Depth: twenty one inches
• Product Weight: forty seven pounds
• Shipping Weight: sixty two pounds
• Certifications: AHRI, ETL, ISO
• Parts Warranty: ten limited years
• Plenum Opening Width: nineteen inches
• Plenum Opening Height: twenty inches
