US Aluminum CHPF3743C6 Horizontal Cased A Coil R-410A

Product Description

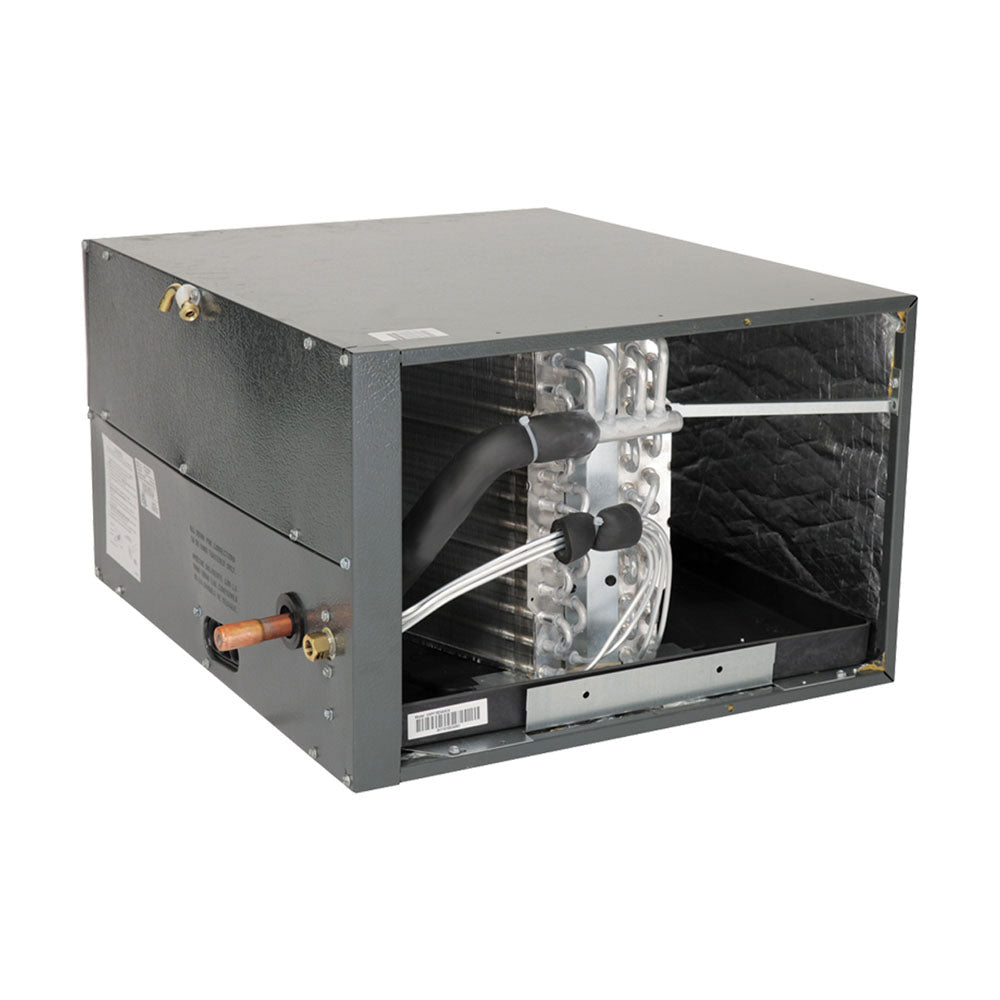

The US ALUMINUM CHPF3743C6 is a horizontal cased A coil made for split system air conditioners and heat pumps. This coil has an all-aluminum construction which enhances durability and efficiency in heat transfer. The coil is enclosed in a galvanized steel cabinet with a painted finish. It is compatible with various tonnage heat pumps or condensers and is tested for pressure before shipment.

• Casing: Cased A Coil

• Configuration: Horizontal

• Refrigerant Compatibility: R-22, R-410A

Product Highlights

The design allows maximum airflow and efficiency in cooling applications.

Product Information

Standard Information

• Product Category: Evaporator Coil

• Product Line: CHPF

Technical Specifications

• Refrigerant Type: R-410A

• Capacity: 3.0 - 3.5 Tons

• Cooling BTU: 42000

• Nominal Minimum Cooling Capacity: 36000 BTU

• Suction Connection Size: 7/8 Inch

• Liquid Connection Size: 3/8 Inch

• Length: 21 1/8 Inches

• Width: 26 Inches

• Height: 21 Inches

• Weight: 63 Pounds

• ETL Listed: Yes

• AHRI Certified: Yes

• Number of Rows: 3

• Cooling Tonnage: 3 / 3.5 Tons

• Liquid Line Size (OD): 3/8 Inches

• Suction Line Size (OD): 7/8 Inches
