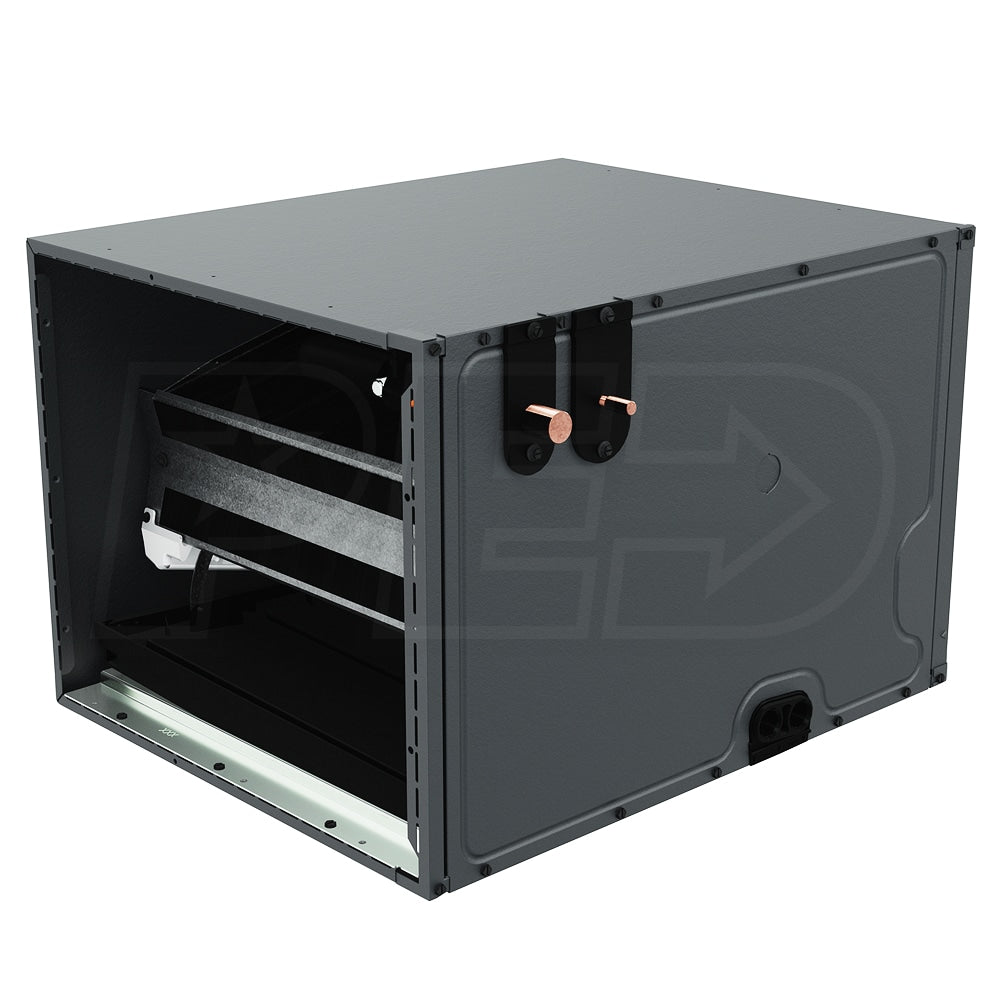

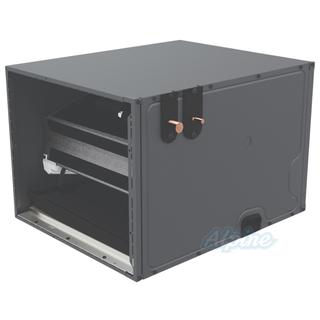

US Aluminum CHPEA4830C3 4.0 Ton Horizontal A Coil

Product Description

The US Aluminum CHPEA4830C3 is a four ton evaporator coil designed for use with split system air conditioners and heat pumps. This model features a cased A coil ideal for horizontal airflow installations. The all-aluminum construction makes it durable and efficient, particularly when using R-32 refrigerant. A thermostatic expansion valve (TXV) is factory installed for optimal performance. The coil is both AHRI certified and ETL listed.

• Cased design for horizontal airflow applications.
• Factory-installed TXV for efficiency.
• Compatible with R-32 refrigerant.

Product Highlights

This evaporator coil is suitable for both residential and commercial applications, ensuring reliable cooling solutions.

Product Information

Standard Information

• Brand: US Aluminum
• MPN: CHPEA4830C3

Technical Specifications

• Product Type: Evaporator Coil
• Coil Type: A Coil
• Configuration: Horizontal
• Casing: Cased
• Refrigerant Type: R-32
• Cooling Capacity: 4.0 Tons
• Cooling BTU: 48000 BTU
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• TXV Installed: Yes
• Cabinet Width: 21 Inches
• Product Width: 30 Inches
• Product Depth: 21 Inches
• Product Height: 21 Inches
• Product Weight: 63 Pounds
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
• Dimensions: 21 W x 21 D x 30 H
• Metering Device: TXV
• Metering Device Refrigerant Compatibility: R-32
• Plenum Opening Width: 19 Inches
• Plenum Opening Height: 20 Inches
