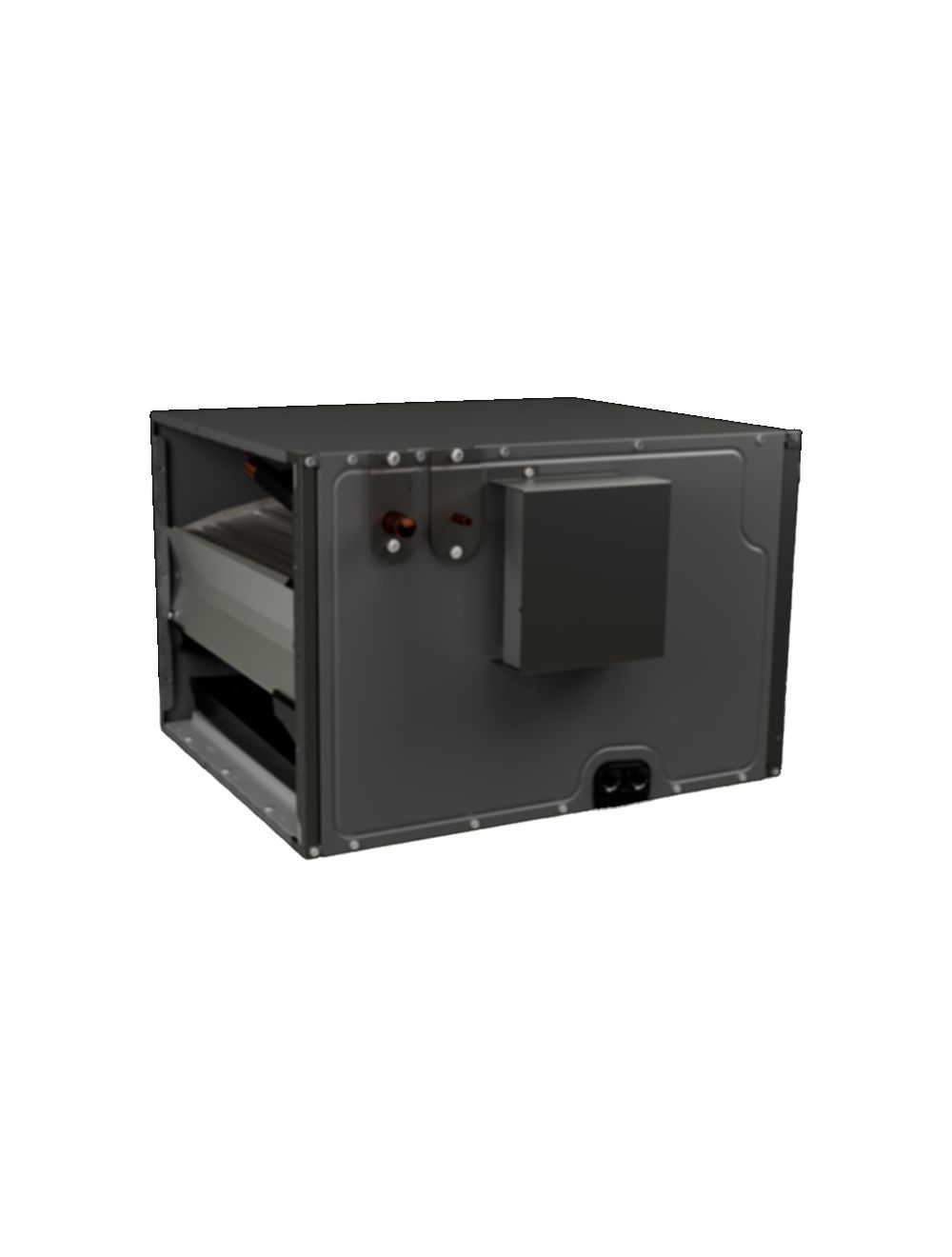

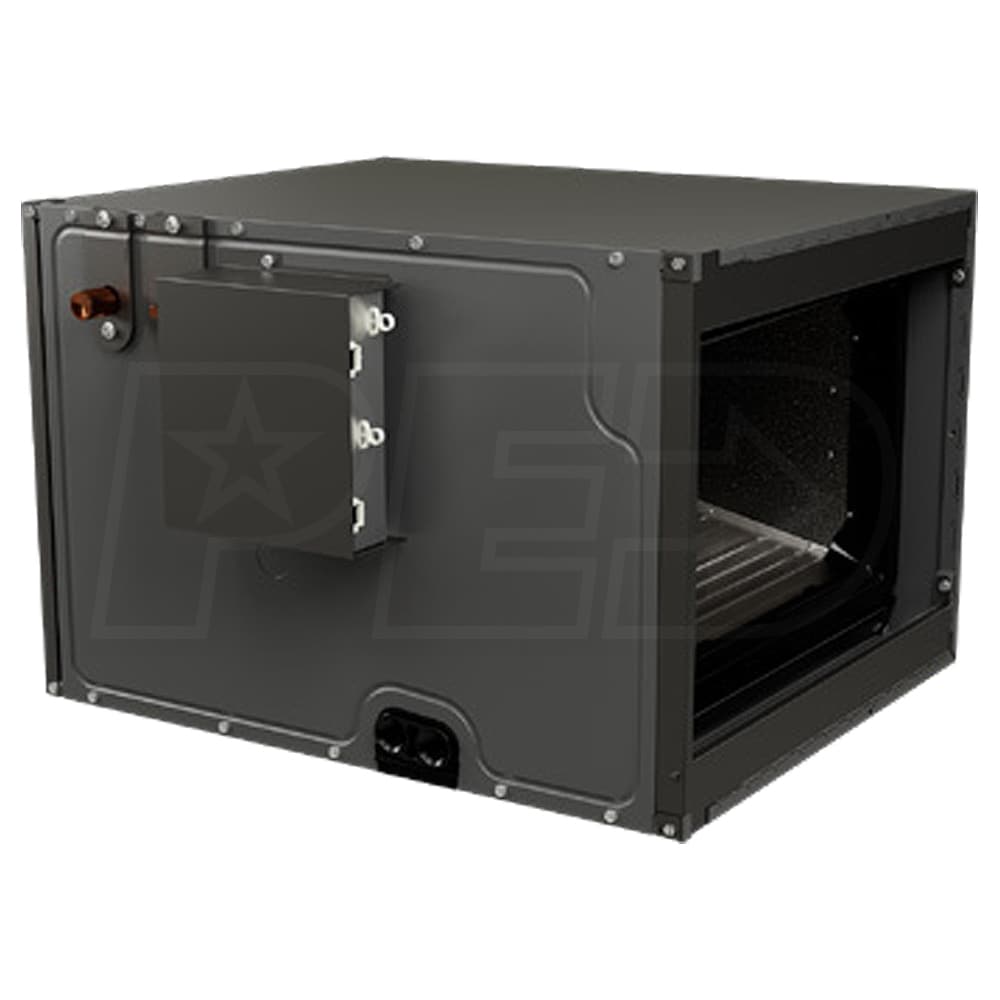

US Aluminum CHPEA3026C3 Horizontal A Coil Evaporator 3.0 Ton R-32 Refrigerant

Product Description

The US Aluminum CHPEA3026C3 is a horizontal A coil evaporator designed for efficient air cooling. This unit is engineered for use with R-32 refrigerant, promoting lower environmental impact. The entire coil is constructed from aluminum, ensuring durability and reliable performance.

• Factory-installed electronic expansion valve (EEV)
• Designed for horizontal airflow applications
• Cooling capacity of three tons

Product Highlights

This evaporator coil features an all-aluminum design and is optimized for horizontal installation, providing consistent cooling. The unit includes a factory-installed EEV for precise refrigerant control, enhancing efficiency.

Product Information

Standard Information

• Model Number: CHPEA3026C3
• Product Line: CHPEA

Technical Specifications

• Refrigerant Type: R-32
• Configuration: Horizontal
• Capacity: 3.0 Tons
• Cooling BTU: 36000
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 26 Inches
• Product Height: 21 Inches
• Product Width: 26 Inches
• Product Depth: 21 Inches
• Product Weight: 52 Pounds
• Shipping Weight: 67 Pounds
• TXV Installed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 12 Limited Years
