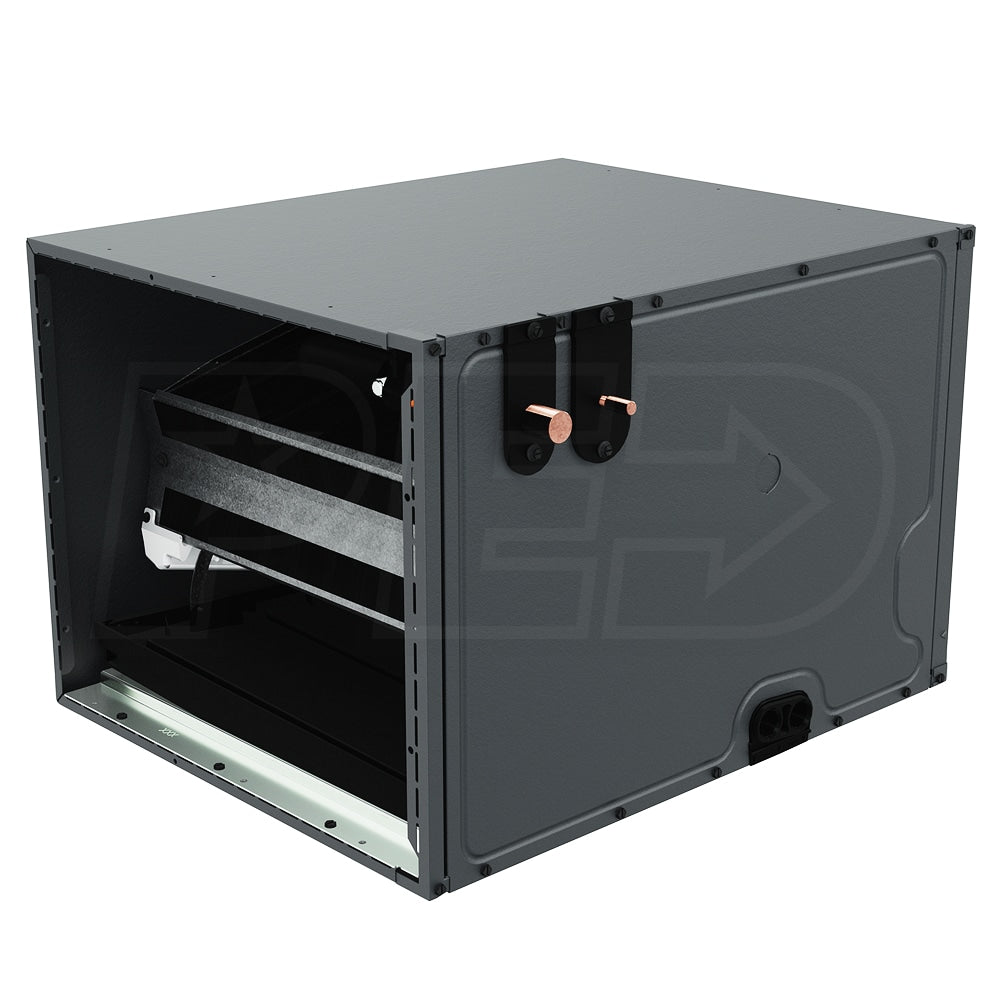

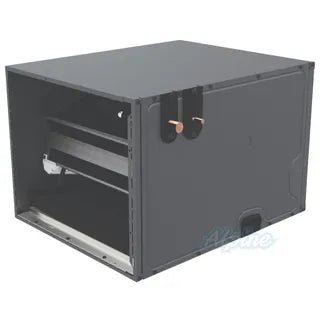

US ALUMINUM CHPEA3026B3 2.5 Ton Horizontal A Coil Evaporator

Product Description

The US ALUMINUM CHPEA3026B3 is a 2.5-ton evaporator coil suitable for split system air conditioners and heat pumps. This unit is designed for horizontal airflow applications and comes with a factory-installed thermostatic expansion valve (TXV). Constructed from aluminum, it is optimized for use with R-32 refrigerant. The evaporator includes a secure cabinet and an effective condensate management system.

• Cased A coil design for horizontal configuration
• Equipped with a factory-installed TXV
• Compatible with R-32 refrigerant

Product Highlights

This evaporator coil ensures efficient cooling performance and reliability in various HVAC systems.

Product Information

Standard Information

• Product Type: Evaporator Coil
• Product Line: CHPTA

Technical Specifications

• Refrigerant Type: R-32
• Configuration: Horizontal
• Coil Style: A Coil
• Casing: Cased
• TXV Installed: Yes
• Capacity: 2.5 Tons
• Cooling BTU: 30000 BTU
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Width: 26 Inches
• Product Height: 17.5 Inches
• Product Depth: 21 Inches
• Product Weight: 44 Pounds
• Shipping Weight: 59 Pounds
• Certifications: ETL Listed, AHRI Certified, ISO Certified
• Parts Warranty: 10 Limited Years
• Metering Device: TXV
• Mobile Home Compatible: No
• Plenum Opening Width: 19 Inches
• Plenum Opening Height: 16.5 Inches
