US Aluminum CHPE4860D4 Horizontal A Evaporator Coil 4 Ton

Product Description

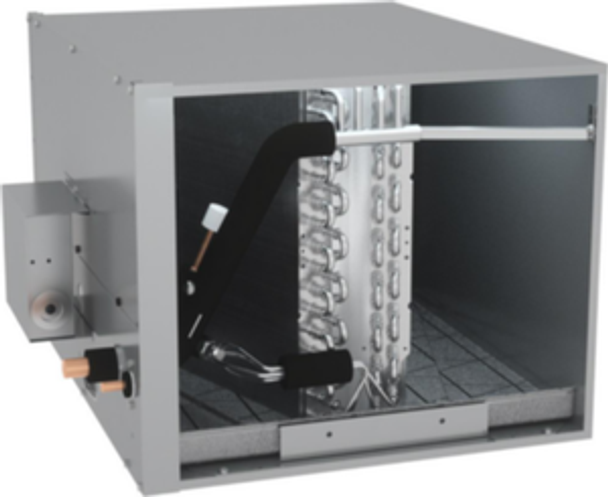

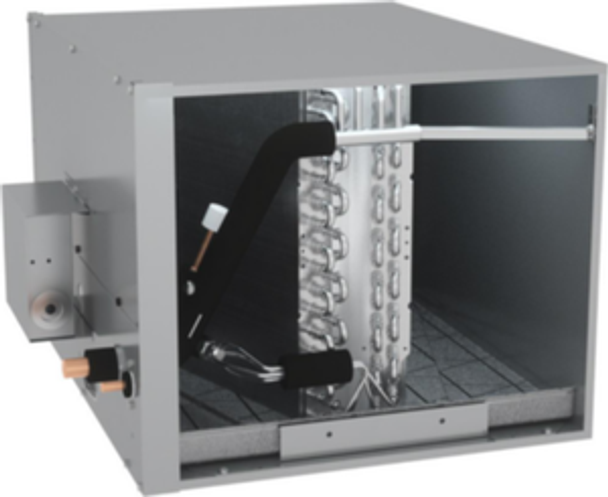

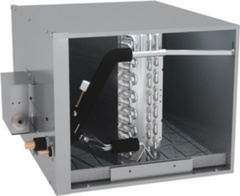

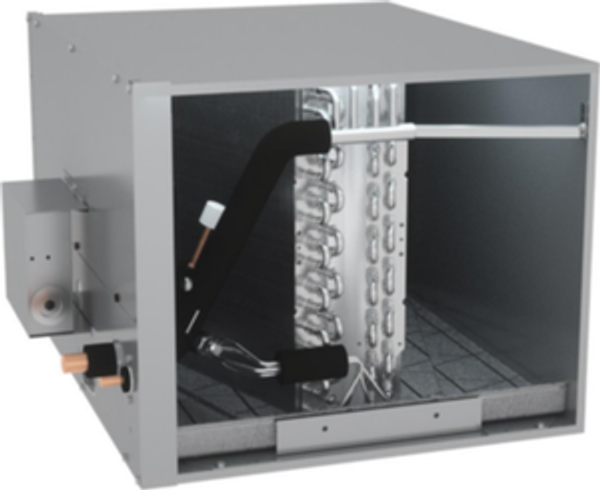

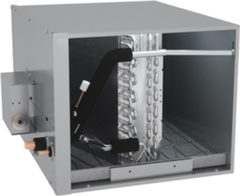

The US Aluminum CHPE4860D4 is a cased horizontal A evaporator coil suitable for split system air conditioning and heat pump applications. This unit is constructed with an all-aluminum coil and is optimized for R-410A refrigerant.

• All-aluminum evaporator coil.
• Factory-installed electronic expansion valve (EEV) for enhanced refrigerant control.
• Designed for horizontal airflow.

Product Highlights

This evaporator coil features a galvanized, leather grain-embossed cabinet with foil-faced insulation to minimize condensation. It includes a rust-resistant and UV-resistant drain pan with secondary drain connections.

Product Information

Standard Information

• Model: CHPE4860D4
• Country of Origin: USA

Technical Specifications

• Air Flow Direction: Horizontal
• Cooling Capacity: 4 Ton, 5 Ton
• Refrigerant: R-410A
• Expansion Device: Electronic Expansion Valve
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Product Dimensions: 21 inches x 26 inches x 24.5 inches
• Weight: 79 lbs
• Cabinet Finish: Painted
• Evaporator Coil Rows: 4
• Evaporator Fin Density: 12
• Installation Type: Ducted
• Unit Type: Indoor
• System Family: Unitary Split System
• Tonnage: 4
• Condensate Drain Outlet: 3/4 inch
