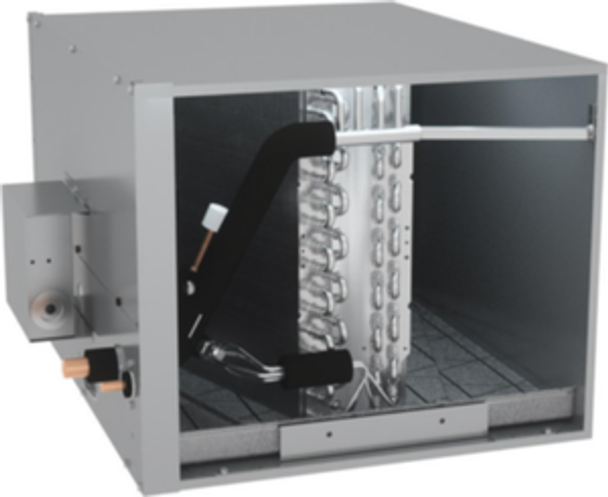

US ALUMINUM CHPE3743C4 Cased Horizontal A Indoor Coil

Product Description

The US ALUMINUM CHPE3743C4 is a cased horizontal A indoor coil tailored for use in cooling and heat pump systems. This unit features a robust all-aluminum evaporator coil paired with a durable galvanized steel cabinet, finished with a painted, leather grain-embossed surface. The design includes a rust-resistant thermoplastic drain pan that effectively reduces water retention and enhances UV resistance.

• All-aluminum evaporator coil for efficient heat exchange.
• Equipped with an electronic expansion valve for precise refrigerant control.
• Galvanized cabinet with a textured finish for added durability.

Product Highlights

This indoor coil is designed to improve the efficiency and performance of HVAC systems, making it suitable for a variety of applications.

Product Information

Standard Information

• Brand: US ALUMINUM
• MPN: CHPE3743C4

Technical Specifications

• Coil Type: Cased
• Configuration: Horizontal
• Application: Cooling and Heat Pump
• Refrigerant: R-410A
• Nominal Capacity: 3 to 4 T
• Cooling Capacity: 36000 Btu/h
• Expansion Device: Electronic Expansion Valve
• Depth: 21.125 inches
• Width: 26 inches
• Height: 21 inches
• Liquid Connection: 3/8 inches
• Suction Connection: 7/8 inches
• Drain Outlet: 3/4 inches
• Weight: 67 lb
• Material: Aluminum
• Finish: Painted
• ETL Listed: Yes
• Plenum Opening Depth: 19 inches
• Plenum Opening Height: 20 inches
• Evaporator Coil Rows: 4
• Evaporator Fin Density: 14 fins per inch
