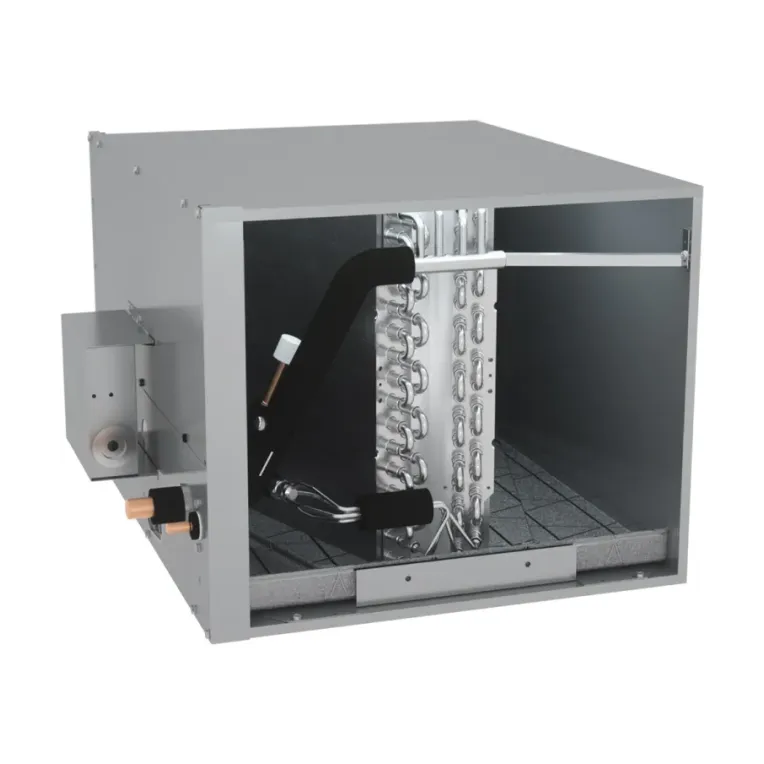

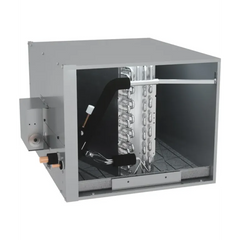

US Aluminum CHPE2430B4 1.5 Ton Horizontal Evaporator Coil

Product Description

The US Aluminum CHPE2430B4 is a 1.5-ton horizontal evaporator coil designed for efficient cooling in residential and commercial HVAC systems. This evaporator coil is suitable for areas ranging from six hundred to nine hundred square feet, making it an ideal choice for various applications.

• Cooling capacity of 1.5 tons.
• Uses R-410A refrigerant.
• Horizontal airflow design for optimal cooling.

Product Highlights

The product includes a factory-installed electronic expansion valve, enabling precise refrigerant control and temperature regulation. The foil-faced insulation enhances efficiency by reducing condensation within the casing.

Product Information

Standard Information

• Model: CHPE2430B4
• Cooling Capacity: 1.5 Ton

Technical Specifications

• Air Flow Direction: Horizontal
• Refrigerant: R-410A
• Product Height: 26 inches
• Product Length: 21.125 inches
• Product Width: 17.5 inches
• Weight: 56 lbs
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
