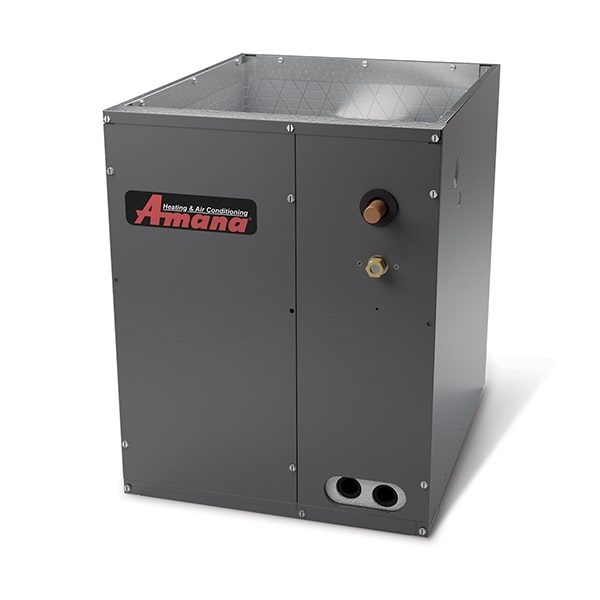

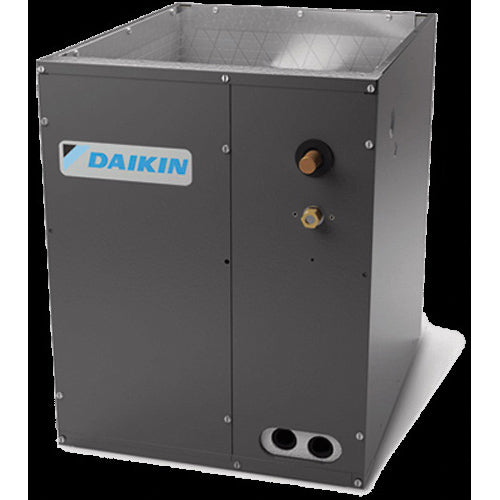

US Aluminum CAUTA3626B3 Evaporator Coil 3 Ton

Product Description

The US Aluminum CAUTA3626B3 is a three-ton evaporator coil suitable for both upflow and downflow installations. This evaporator coil is constructed entirely of aluminum for enhanced heat transfer efficiency. Key features include a cased A-coil design and a thermal expansion valve (TXV) that comes factory-installed, making it ready for immediate use with R-32 refrigerant. The unit is designed with an embossed cabinet finish and foil-faced insulation to minimize condensation.

• All-aluminum construction for efficient heat exchange.
• Compatible with both upflow and downflow applications.
• Equipped with a factory-installed thermal expansion valve (TXV).

Product Highlights

This evaporator coil is ideal for HVAC systems requiring reliable cooling capacities.

Product Information

Standard Information

• Type: Evaporator Coil
• Configuration: Upflow/Downflow

Technical Specifications

• Model: CAPTA3626B3
• Cooling Capacity: 3 Ton
• Cooling BTU: 36000 BTU
• Refrigerant: R-32
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Cabinet Width: 17.5 inches
• Product Dimensions: 17.5 W x 21 D x 26 H inches
• Weight: 48 lbs
• Certifications: AHRI certified, ETL listed
• Warranty: 10 Year Parts
