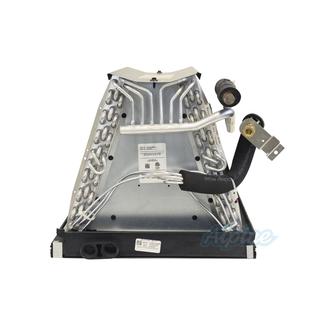

US Aluminum CAUFA3022C6 Uncased Upflow/Downflow Evaporator Coil

Product Description

The US Aluminum CAUFA3022C6 is an uncased evaporator coil suitable for split system air conditioners and heat pumps. This coil is built with all-aluminum materials that include tubing, fins, and end plates. It works with R-22 and R-410A refrigerants and can be installed in both upflow and downflow configurations.

• Compatible with R-22 and R-410A refrigerants
• Features a thermoplastic drain pan
• Configured for upflow or downflow applications

Product Highlights

This evaporator coil provides flexibility in installation and efficiency in cooling and heating applications.

Product Information

Standard Information

• Product Type: Evaporator Coil
• Refrigerant Compatibility: R-22 / R-410A

Technical Specifications

• Configuration: Downflow / Upflow
• Number of Rows: 3
• Cooling Capacity: 30000 BTU
• Cooling Tonnage: 2.5 Tons
• Liquid Line Size (OD): 3/8 inches
• Suction Line Size (OD): 3/4 inches
• Coil Width: 19 7/8 inches
• Coil Height: 17 7/8 inches
• Coil Depth: 20 inches
• Product Weight: 30 lbs
• Orifice Size: 0.063 inches
