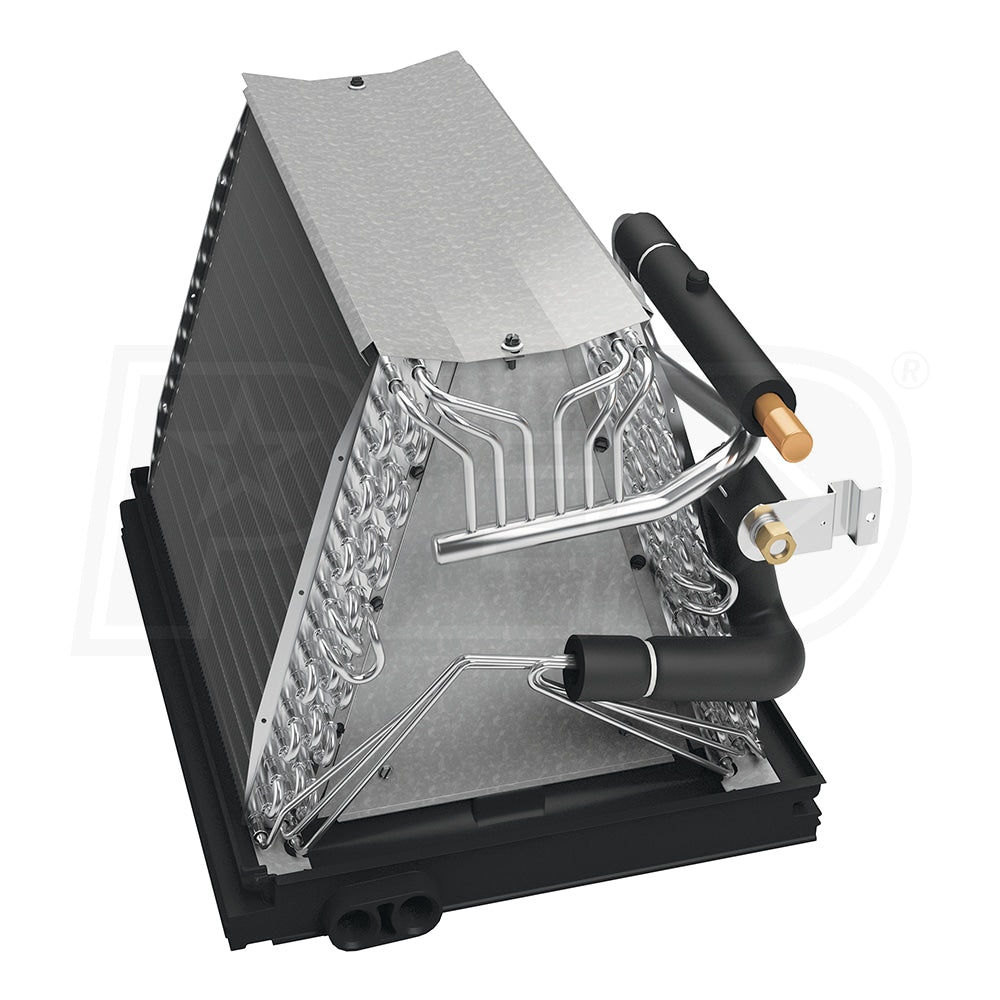

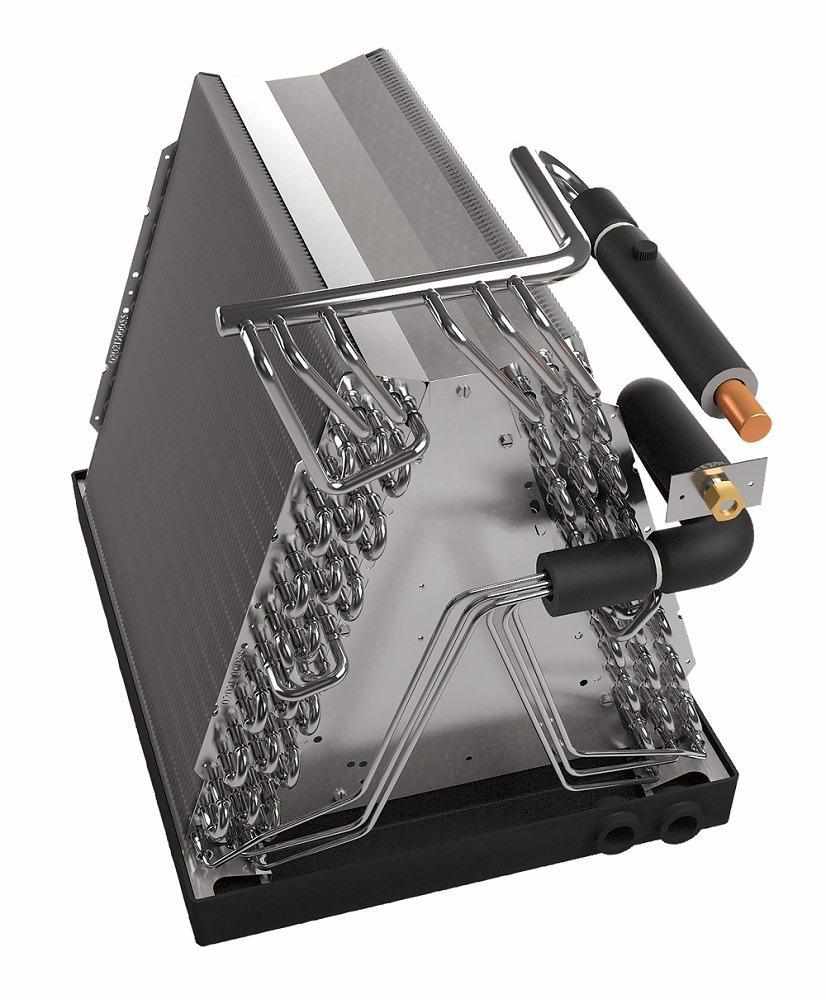

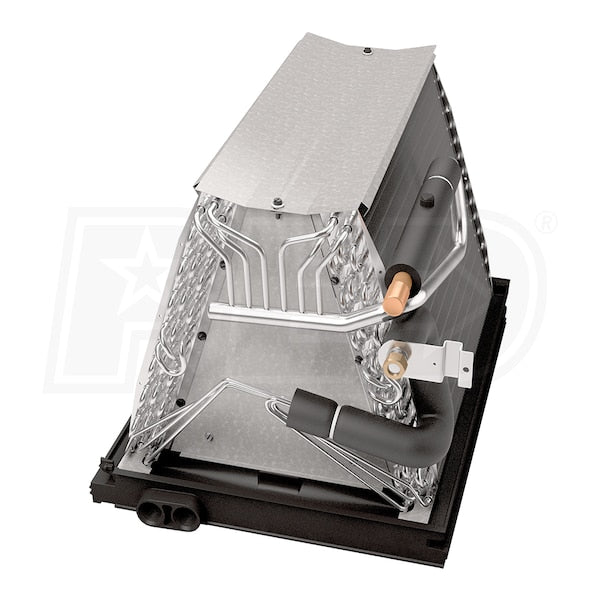

US ALUMINUM CAUFA2422B6 2-Ton Uncased Upflow/Downflow A Coil

Product Description

The US ALUMINUM CAUFA2422B6 is an uncased A coil designed for both upflow and downflow applications in split system air conditioners and heat pumps. This evaporator coil features all-aluminum construction, including tubing, fins, and end plates, ensuring efficient heat transfer. It is compatible with R-410A refrigerant and comes with a check flowrator for effective cooling and heat pump functions. The unit includes a thermoplastic drain pan, which is resistant to rust and UV damage. Additionally, it is equipped with foil-faced insulation, which helps to minimize cabinet condensation.

• Constructed with all-aluminum tubing and fins.
• Optimized for R-410A refrigerant and equipped with a check flowrator.
• Includes a rust-resistant thermoplastic drain pan and foil-faced insulation.

Product Highlights

This coil is ideal for various HVAC applications, providing reliable performance and durability.

Product Information

Standard Information

• Product Type: Evaporator Coil
• Product Line: CAUFA Series

Technical Specifications

• Configuration: Upflow/Downflow
• Casing: Uncased
• Style: A Coil
• Capacity: 2 Ton
• Cooling BTU: 24000 BTU
• Primary Refrigerant: R-410A
• Liquid Line Size (OD): 3/8 Inches
• Suction Line Size (OD): 3/4 Inches
• Cabinet Width: 17 1/2 Inches
• Width: 16 3/8 Inches
• Depth: 20 Inches
• Height: 17 7/8 Inches
• Weight: 28 lb
• ETL Listed: Yes
• AHRI Certified: Yes
