US Aluminum CAUFA2418B6 Uncased Upflow/Downflow A Coil

Product Description

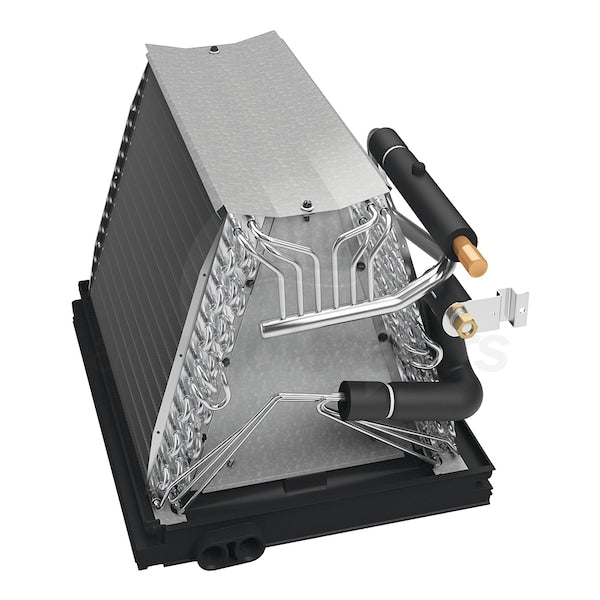

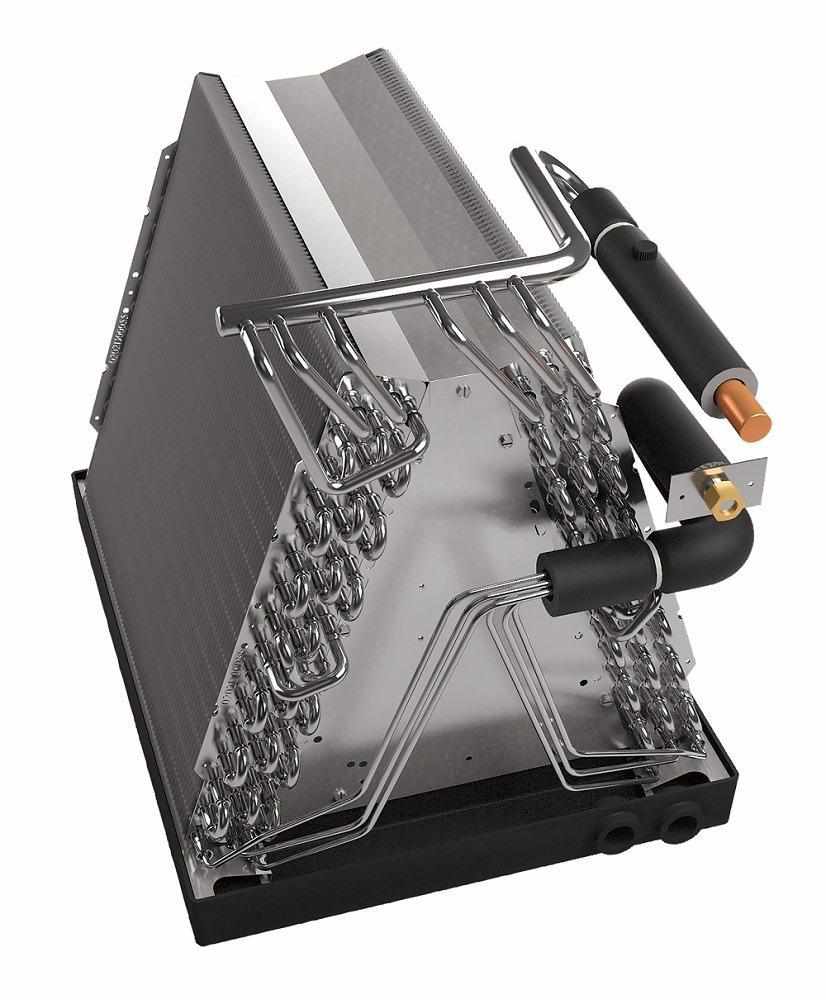

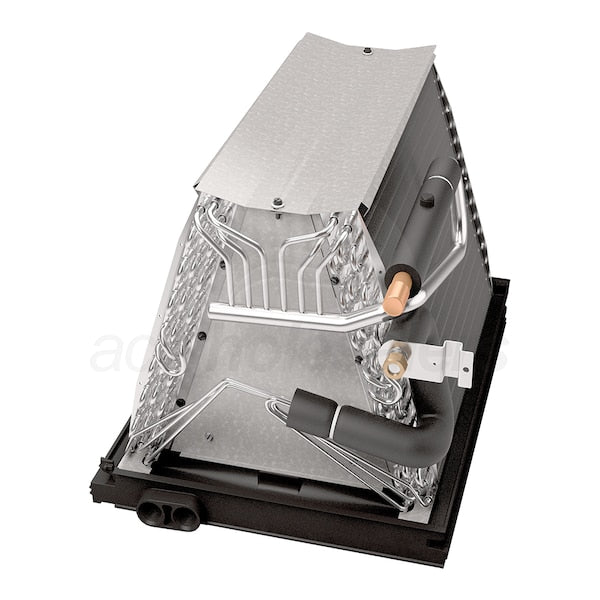

The US Aluminum CAUFA2418B6 is an uncased A coil suitable for both upflow and downflow HVAC applications. It has all-aluminum construction with rifled tubing and corrugated fins, which support effective heat exchange. This evaporator coil features a rust-resistant and UV-resistant thermoplastic drain pan that minimizes water retention. The unit is AHRI certified and ETL listed.

• Designed for versatile upflow or downflow use.
• Constructed entirely from aluminum for improved performance.
• Includes connections for three-eighths-inch liquid and three-quarter-inch suction refrigerant lines.

Product Highlights

This A coil ensures durability and efficient operation in residential HVAC systems.

Product Information

Standard Information

• Manufacturer Part Number: CAUFA2418B6
• Product Line: CAUFA Series

Technical Specifications

• Coil Type: A Coil
• Application: Upflow/Downflow
• Casing: Uncased
• Refrigerant Type: R-410A
• Capacity: 2.0 Tons
• Cooling BTU: 24000 BTU
• Liquid Connection Size: 3/8 Inch
• Suction Connection Size: 3/4 Inch
• Cabinet Width: 17.5 Inches
• Product Height: 14.5 Inches
• Product Width: 16.375 Inches
• Product Depth: 20 Inches
• Weight: 20 lbs
• Certifications: AHRI Certified, ETL Listed
