US Aluminum CAUF4961D6 Upflow/Downflow Uncased A Coil R-410A

Product Description

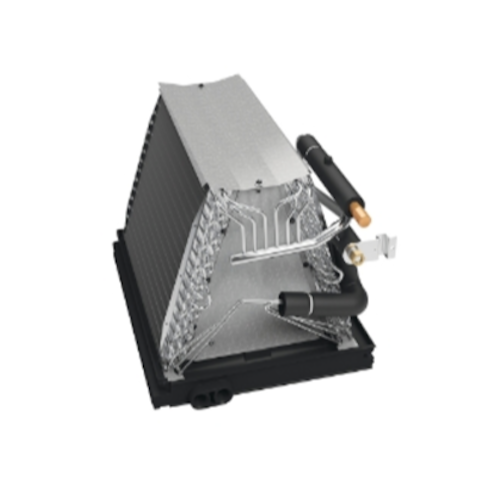

The US Aluminum CAUF4961D6 is an upflow or downflow uncased A coil, suitable for use in split-system air conditioners or heat pump systems. This product has an all-aluminum construction that enhances heat transfer efficiency. The coil is designed to handle both R-22 and R-410A refrigerants. The galvanized steel cabinet features a leather grain-embossed finish and is equipped with foil-faced insulation to improve performance. A thermoplastic drain pan is included to facilitate effective condensate management.

• All-aluminum coil for enhanced heat transfer.

• Suitable for both upflow and downflow applications.

• Includes a thermoplastic drain pan for easy condensate management.

Product Highlights

The US Aluminum CAUF4961D6 uncased A coil offers versatility in installation and compatibility with standard refrigerant types.

Product Information

Standard Information

• Product Category: Evaporator Coil

• Refrigerant Type: R-410A, R-22

Technical Specifications

• Capacity: 4.0 - 5.0 Tons

• Cooling BTU: 60000 BTU

• Nominal Minimum Cooling Capacity: 48000 BTU

• Suction Connection Size: 7/8 Inch

• Liquid Connection Size: 3/8 Inch

• Product Dimensions: 24.5 x 30 x 21 Inches

• Product Weight: 76 Pounds

• ETL Listed: Yes

• AHRI Certified: Yes

• Number of Rows: 4
