US ALUMINUM CAPTA3626B3 Evaporator Coil R-32 (36,000 BTU) Replacement MPN CAPTA3626B3

Product Description

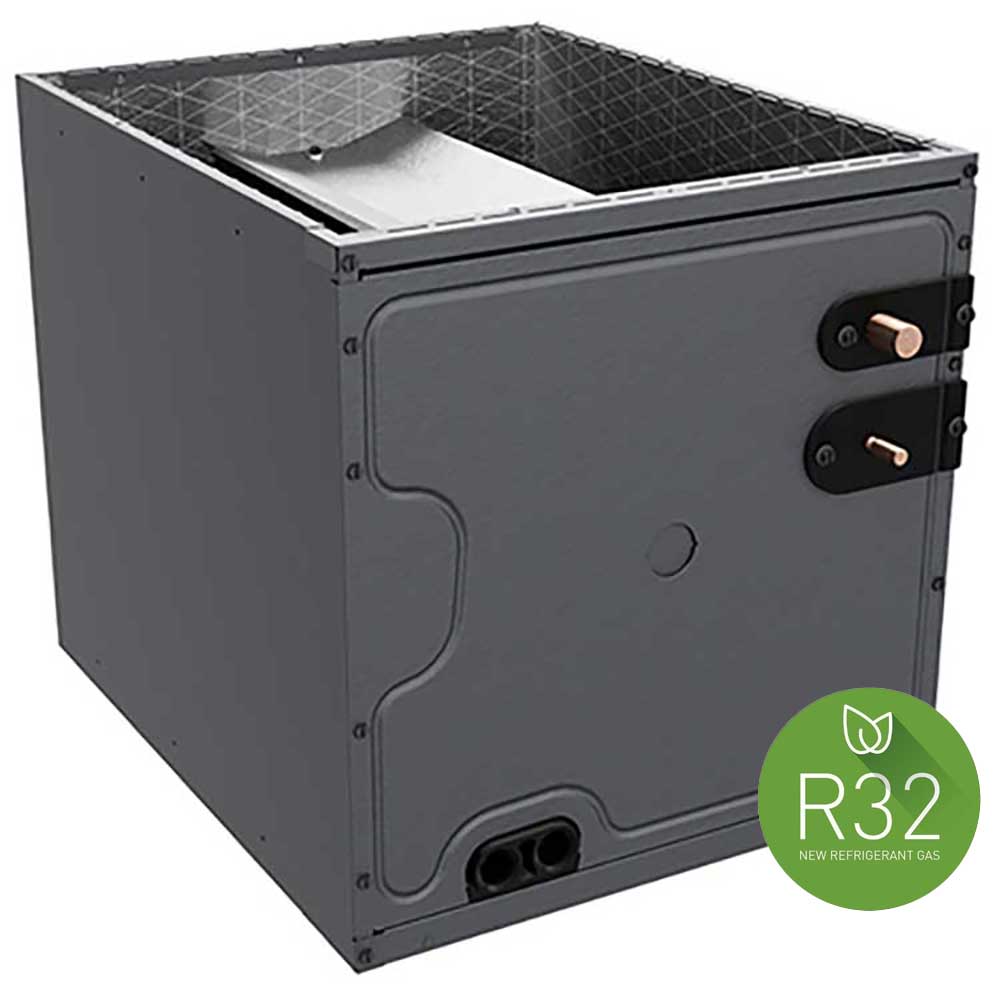

The US ALUMINUM CAPTA3626B3 is an evaporator coil designed for both upflow and downflow applications. This unit features all-aluminum construction with aluminum tubing and fins for effective heat exchange. The coil comes in a cased cabinet and includes a factory-installed thermal expansion valve (TXV), optimizing it for use with R-32 refrigerant. It is suitable for split system air conditioners and heat pumps.

• All-aluminum construction for durability.
• Includes a factory-installed thermal expansion valve (TXV) for improved efficiency.
• Compatible with R-32 refrigerant for versatile applications.

Product Highlights

This evaporator coil supports efficient cooling and heating in residential systems.

Product Information

Standard Information

• Model Number: CAPTA3626B3
• Coil Type: A Coil

Technical Specifications

• Refrigerant Type: R-32
• Cooling Capacity: 3.0 Ton
• Cooling BTU: 36,000 BTU
• Airflow Orientation: Downflow, Upflow
• Liquid Line Connection Size: 3/8 inches
• Suction Line Diameter: 7/8 inches
• Width: 17.5 inches
• Height: 26 inches
• Depth: 21 inches
• Product Weight: 33 lbs.
• Certifications: AHRI, ETL, ISO
• Casing: Cased
• TXV Installed: Yes
